Products

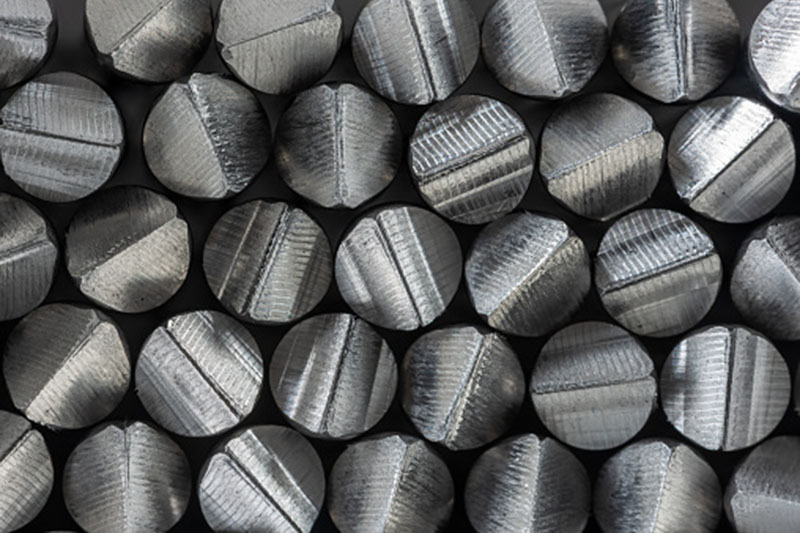

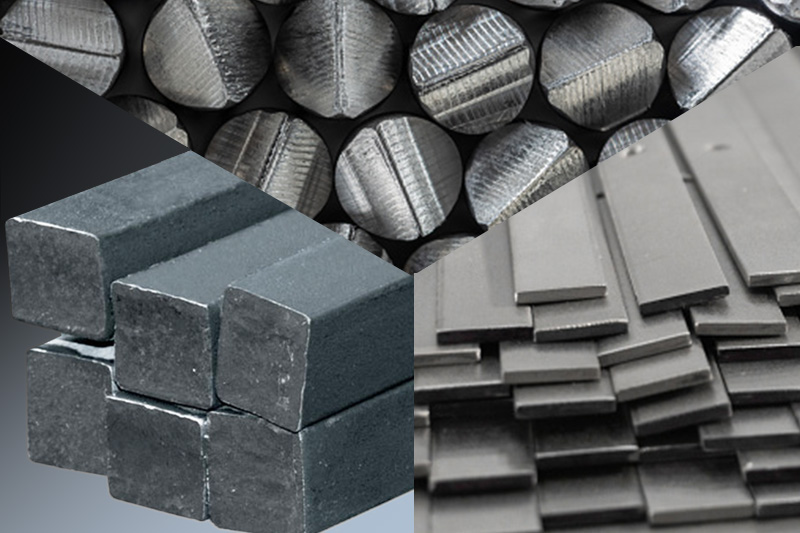

Sligo Steel offers a full complement of both hot and cold rolled bar, sheet, strip, plate, angles, channels, and beams. And with our full service center, we can do all your prefab work to keep your shop running smooth and on time!

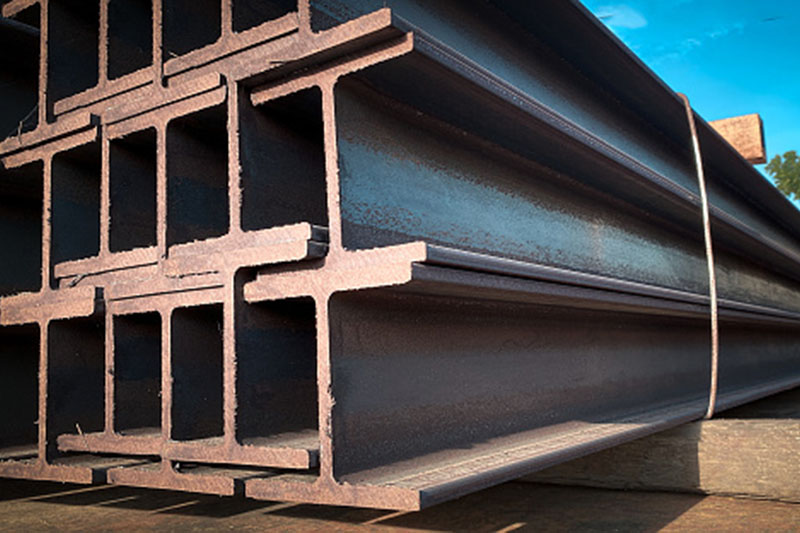

Beams - Print PDF

WF_beam_dimensions2

Structural/Wide Flange Beams and H-Pile

ATSM A36
ATSM A572
ATSM A992



    A B C D       A B C D
Designation LBS/Ft Section Depth inches  Flange Width Inches  Ave. Flange Thickness Inches Web Thickness Inches Designation LBS/ft Section Depth inches  Flange Width Inches  Ave. Flange Thickness Inches Web Thickness Inches
S3 x 5.7 5.7 3 2.33 0.26 0.17 S15 x 42.9 42.9 15 5.501 0.622 0.411
S3 x 7.5 7.5 3 2.509 0.26 0.349 S15 x 50 50 15 5.64 0.622 0.55
S4 x 7.7 7.7 4 2.663 0.293 0.193 W16 x 26 26 15.69 5.5 0.345 0.25
S4 x 9.5 9.5 4 2.796 0.293 0.236 W16 x 31 31 15.88 5.525 0.44 0.275
S5 x 10 10 5 3.5 0.326 0.214 W16 x 36 36 15.86 6.985 0.43 0.295
S5 x 14.75 14.75 5 3.284 0.326 0.494 W16 x 40 40 16.01 6.995 0.505 0.305
W6 x 9 9 5.9 3.94 0.215 0.17 W16 x 45 45 16.13 7.035 0.565 0.345
W6 x 12 12 6.03 4 0.28 0.23 W16 x 50 50 16.26 7.07 0.63 0.38
S6 x 12.5 12.5 6 3.332 0.359 0.232 W16 x 57 57 16.43 7.12 0.715 0.43
W6 x 15 15 5.99 5.99 0.26 0.23 w16 x 67 67 16.33 10.235 0.665 0.395
W6 x 16 16 6.28 4.03 0.405 0.26 W16 x 77 77 16.52 10.295 0.76 0.455
S6 x 17.25 17.25 6 3.565 0.359 0.465 W16 x 89 89 16.75 10.365 0.875 0.525
W6 x 20 20 6.2 6.02 0.365 0.26 W16 x 100 100 16.97 10.425 0.985 0.585
W6 x 25 25 6.38 6.08 0.455 0.32 W18 x 35 35 17.7 6 0.425 0.3
S7 x 15.3 15.3 7 3.662 0.392 0.252 W18 x 40 40 17.9 6.015 0.525 0.315
S7 x 20 20 7 3.86 0.392 0.45 W18 x 46 46 18.06 6.06 0.605 0.36
W8 x 10 10 7.89 3.94 0.205 0.17 W18 x 50 50 17.99 7.495 0.57 0.355
W8 x 13 13 7.99 4 0.255 0.23 S18 x 54.7 54.7 18 6.001 0.691 0.461
W8 x 15 15 8.11 4.015 0.315 0.245 W18 x 55 55 18.11 7.53 0.63 0.39
W8 x 18 18 8.14 5.25 0.33 0.23 W18 x 60 60 18.24 7.555 0.695 0.415
S8 x 18.4 118.4 8 4.001 0.426 0.271 W18 x 65 65 18.35 7.59 0.75 0.45
W8 x 21 21 8.28 5.27 0.4 0.25 W18 x 70 70 18 6.251 0.691 0.711
S8 x 23 23 8 4.171 0.426 0.441 W18 x 71 71 18.47 7.635 0.81 0.495
W8 x 24 24 7.93 6.495 0.4 0.245 W18 x 76 76 18.21 11.035 0.68 0.425
W8 x 28 28 8.06 6.535 0.465 0.285 W18 x 86 86 18.39 11.09 0.77 0.48
W8 x 31 31 8 7.995 0.435 0.285 W18 x 97 97 18.59 11.145 0.87 0.535
W8 x 35 35 8.12 8.02 0.495 0.31 W18 x 106 106 18.73 11.2 0.94 0.59
W8 x 40 40 8.25 8.07 0.56 0.36 W18 x 119 119 18.97 11.265 1.06 0.655
W8 x 48 48 8.5 8.11 0.685 0.4 W20 x 26 26 10.33 5.77 0.44 0.26
W8 x 58 58 8.75 8.22 0.81 0.51 S20 x 65.4 65.4 20 6.255 0.795 0.505
W8 x 67 67 9 8.28 0.935 0.57 S20 x 75 75 20 6.385 0.795 0.635
W10 x 12 12 9.87 3.96 0.21 0.19 S20 x 95 95 20 7.2 0.8 0.92
W10 x 15 15 9.99 4 0.27 0.23 W21 x 44 44 20.66 6.5 0.45 0.35
W10 x 17 17 10.11 4.01 0.33 0.24 w21 x 50 50 20.83 6.53 0.535 0.38
W10 x 19 19 10.24 4.02 0.395 0.25 W21 x 57 57 21.06 6.555 0.65 0.405
W10 x 22 22 10.17 5.75 0.36 0.24 W21 x 62 62 20.99 8.24 0.615 0.4
S10 x 25.4 25.4 10 4.661 0.491 0.311 W21 x 68 68 21.13 8.27 0.685 0.43
W10 x 30 30 10.47 5.81 0.51 0.3 W21 x 73 73 21.24 8.295 0.74 0.455
W10 x 33 33 9.73 7.96 0.435 0.29 W21 x 83 83 21.43 8.355 0.835 0.515
W10 x 39 39 9.92 7.985 0.53 0.315 W21 x 93 93 21.62 8.42 0.93 0.58
W10 x 45 45 10.1 8.02 0.62 0.35 W21 x 101 101 21.36 12.29 0.8 0.5
W10 x 49 49 9.98 10 0.56 0.34 W21 x 111 111 21.51 12.34 0.875 0.55
W10 x 54 54 1.09 10.03 0.615 0.37 W21 x 122 122 21.68 12.39 0.96 0.6
W10 x 60 60 10.22 10.08 0.68 0.42 W21 x 132 132 21.83 12.44 1.035 0.65
W10 x 68 68 10.4 10.13 0.77 0.47 W21 x 147 147 22.06 12.51 1.15 0.72
W10 x 77 77 10.6 10.19 0.87 0.53 W24 x 55 55 23.57 7.005 0.505 0.395
W10 x 88 88 10.84 10.265 0.99 0.605 W24 x 62 62 23.74 7.04 0.59 0.43
W10 x 100 100 11.1 10.34 1.12 0.68 W24 x 68 68 23.73 8.965 0.585 0.415
W10 x 112 112 11.36 10.415 1.25 0.755 W24 x 76 76 23.92 8.99 0.68 0.44
W12 x 14 14 11.91 3.97 0.225 0.2 S24 x 79.9 79.9 24 7 0.87 0.5
W12 x 16 16 11.99 3.99 0.265 0.22 W24 x 84 84 24.1 9.02 0.77 0.47
W12 x 19 19 12.16 4.005 0.35 0.235 S24 x 90 90 24 7.125 0.87 0.625
W12 x 22 22 12.31 4.03 0.425 0.26 W24 x 94 94 24.31 9.065 0.875 0.515
W12 x 26 26 12.22 6.49 0.38 0.23 S24 x 100 100 24 7.425 0.87 0.745
W12 x 30 30 12.34 6.52 0.44 0.26 W24 x 104 104 24.06 12.75 0.75 0.5
W12 x 35 35 12.5 6.56 0.52 0.3 S24 x 105.9 105.9 24 7.78 10.9 0.62
W12 x 40 40 11.94 8.005 0.515 0.295 W24 x 117 117 24.26 12.8 0.85 0.55
S12 x 40.8 40.8 12 5.252 0.659 0.462 S24 x 120 120 24 8.05 10.9 0.8
W12 x 45 45 12.06 8.045 0.575 0.335 W24 x 131 131 24.48 12.855 0.96 0.605
W12 x 50 50 12.19 8.08 0.64 0.37 W24 x 146 146 24.74 12.9 1.09 0.65
W12 x 53 53 12.06 9.995 0.575 0.345 W24 x 162 162 25 12.955 1.22 0.705
W12 x 58 58 12.19 10.01 0.64 0.36 W27 x 84 84 26.71 9.96 0.64 0.46
W12 x 65 65 12.12 12 0.605 0.39 W27 x 94 94 26.92 9.99 0.745 0.49
W12 x 72 72 12.25 12.4 0.67 0.43 W27 x 102 102 27.09 10.015 0.83 0.515
W12 x 79 79 12.38 12.08 0.735 0.47 W27 x 114 114 27.29 10.07 0.93 0.57
W12 x 87 87 12.53 12.125 0.81 0.515 W27 x 146 146 27.38 13.965 0.975 0.605
W12 x 96 96 12.71 12.16 0.9 0.55 W27 x 161 161 27.59 14.02 1.08 0.66
W12 x 106 106 12.89 12.22 0.99 0.61 W27 x 178 178 27.81 14.085 1.19 0.725
W12 x 120 120 13.12 12.32 1.105 0.71 W30 x 99 99 29.65 10.45 0.67 0.52
W12 x 136 136 13.41 12.4 1.25 0.79 W30 x 108 108 29.83 10.475 0.76 0.545
W12 x 152 152 13.71 12.48 1.4 0.87 W30 x 116 116 30.01 10.495 0.85 0.565
W12 x 170 170 14.03 12.57 1.56 0.96 W30 x 124 124 30.17 10.515 0.93 0.585
W12 x 190 190 14.38 12.67 1.735 1.06 W30 x 132 132 30.31 10.545 1 0.615
W12 x 210 210 14.71 12.79 1.9 1.18 W30 x 173 173 30.44 14.985 1.065 0.655
W12 x 230 230 15.05 12.895 2.07 1.285 W30 x 191 191 30.68 15.04 1.185 0.71
W12 x 252 252 15.41 13.005 2.25 1.395 W30 x 211 211 30.94 15.105 1.315 0.775
W12 x 279 279 15.85 13.14 2.47 1.53 W33 x 118 118 32.86 11.48 0.74 0.55
W12 x 305 305 16.32 13.235 2.705 1.625 W33 x 130 130 33.09 11.51 0.855 0.58
W12 x 336 336 16.85 13.385 2.955 1.775 W33 x 141 141 33.3 11.535 0.96 0.605
W14 x 22 22 13.74 5 0.335 0.23 W33 x 152 152 33.49 11.565 1.055 0.635
W14 x 26 26 13.91 5.025 0.42 0.255 W33 x 201 201 33.68 15.745 1.15 0.715
W14 x 30 30 13.84 6.73 0.385 0.27 W33 x 221 221 33.93 15.805 1.275 0.775
W14 x 34 34 13.98 6.745 0.455 0.285 W33 x 241 241 34.18 15.86 1.4 0.83
W14 x 38 38 14.1 6.77 0.515 0.31 W36 x 135 135 35.55 11.95 0.79 0.6
W14 x 43 43 13.66 7.995 0.53 0.305 W36 x 150 150 35.85 11.975 0.94 0.625
W14 x 48 48 13.79 8.03 0.595 0.34 W36 x 160 160 36.01 12 1.02 0.65
W14 x 53 53 13.92 8.06 0.66 0.37 W36 x 170 170 36.17 12.03 1.1 0.68
W14 x 61 61 13.89 9.995 0.645 0.375 W36 x 182 182 36.33 12.075 1.18 0.725
W14 x 68 68 14.04 10.035 0.72 0.415 W36 x 194 194 36.49 12.115 1.26 0.765
W14 x 74 74 14.17 10.07 0.785 0.45 W36 x 210 210 36.69 12.18 1.36 0.83
W14 x 82 82 14.31 10.13 0.855 0.51 W36 x 230 230 35.9 16.47 1.26 0.76
W14 x 90 90 14.16 14.52 0.71 0.44 W36 x 245 245 36.08 16.51 1.35 0.8
W14 x 109 109 14.32 14.605 0.86 0.525 W36 x 260 260 36.26 16.55 1.44 0.84
W14 x 120 120 14.48 14.67 0.94 0.59 W36 x 280 280 36.52 16.595 1.57 0.885
W14 x 132 132 14.66 14.725 1.03 0.645 W36 x 300 300 36.74 16.655 1.68 0.945
W14 x 145 145 14.78 15.5 1.09 0.68
W14 x 159 159 14.98 15.565 1.19 0.745
W14 x 176 176 15.22 15.65 1.31 0.83
W14 x 193 193 15.48 15.71 1.44 0.89
W14 x 211 211 15.72 15.8 1.56 0.98
W14 x 233 233 16.04 15.89 1.72 1.07
W14 x 257 257 16.38 15.995 1.89 1.175
W14 x 283 283 16.74 16.11 2.07 1.29
W14 x 311 311 17.12 16.23 2.26 1.41
W14 x 342 342 17.54 16.36 2.47 1.54
W14 x 370 370 17.92 16.475 2.66 1.655
W14 x 398 398 18.29 16.59 2.845 1.77
W14 x 426 426 18.67 16.695 3.035 1.875
W14 x 455 455 19.02 16.835 3.21 2.015
W14 x 500 500 19.6 17.01 3.5 2.19
W14 x 550 550 20.24 17.2 3.82 2.38
W14 x 605 605 20.92 17.415 4.16 2.595
W14 x 665 665 21.64 17.65 4.52 2.83
W14 x 730 730 22.42 17.89 4.89 3.07



Channels - Print PDF

angles_small





A   B C  D A   B C  D
Section Depth inches  LBS/Ft Flange Width Ave. Flange Thickness  Web
Thickness 		 Section Depth inches  LBS/Ft Flange Width Ave. Flange Thickness  Web
Thickness
3 4.1 1-3/8" 1/4" 3/16" 10 6.5 1-1/8" 3/16" 1/8"
3 5 1-1/2" 1/4" 1/4" 10 8.4 1-1/2" 1/4" 3/16"
3 6 1-5/8" 1/4" 3/8" 10 15.3 2-5/8" 7/16" 1/4"
3 7.1 1-15/16" 1/4" 5/16" 10 20 2-3/4" 7/16" 3/8"
4 5.4 1-5/8" 5/16" 3/16" 10 22 3-1/2" 1/2" 5/16"
4 7.25 1-3/4" 5/16" 5/16" 10 25 2-7/8" 7/16" 1/2"
5 6.7 1-3/4" 5/16" 3/16" 10 25 3-1/2" 1/2" 7/16"
5 9 1-7/8" 5/16" 5/16" 10 28.5 4" 9/16" 7/16"
6 8.2 1-7/8" 5/16" 3/16" 10 30 3" 7/16" 11/16"
6 10.5 2" 5/16" 5/16" 10 33.6 4-1/8" 9/16" 9/16"
6 12 2-1/2" 3/8" 5/16" 10 41.1 4-3/8" 9/16" 13/16"
6 13 2-1/8" 5/16" 7/16" 12 10.6 1-1/2" 5/16" 3/16"
6 15.1 2-15/16" 7/16" 5/16" 12 20.7 3" 1/2" 5/16"
6 15.3 3-1/2" 3/8" 5/16" 12 25 3" 1/2" 3/8"
6 16.3 3" 7/16" 3/8" 12 30 3-1/8" 1/2" 1/2"
6 18 3-1/2" 7/16" 3/8" 12 31 3-5/8" 11/16" 3/8"
7 9.8 2-1/8" 3/8" 3/16" 12 35 3-3/4" 11/16" 7/16"
7 12.25 2-1/4" 3/8" 5/16" 12 40 3-7/8" 11/16" 9/16"
7 19.1 3-1/2" 1/2" 3/8" 12 45 4" 11/16" 11/16"
7 22.7 3-5/8" 1/2" 1/2" 12 50 4-1/8" 11/16" 13/16"
8 8.5 1-7/8" 5/16" 3/16" 13 31.8 4" 5/8" 3/8"
8 11.5 2-1/4" 3/8" 1/4" 13 50 4-3/8" 5/8" 13/16"
8 13.75 2-3/8" 3/8" 5/16" 15 33.9 3-3/8" 5/8" 3/8"
8 18.7 3" 1/2" 3/8" 15 40 3-1/2" 5/8" 1/2"
8 18.75 2-1/2" 3/8" 1/2" 15 50 3-3/4" 5/8" 11/16"
8 20 3" 1/2" 3/8" 18 42.7 4" 5/8" 7/16"
8 21.4 3-1/2" 1/2" 3/8" 18 45.8 4" 5/8" 1/2"
8 22.8 3-1/2" 1/2" 7/16" 18 51.9 4-1/8" 5/8" 5/8"
9 13.4 2-3/8" 7/16" 1/4" 18 58 4-1/4" 5/8" 11/16"
9 15 2-1/2" 7/16" 5/16"
9 20 2-5/8" 7/16" 7/16"
9 23.9 3-1/2" 9/16" 3/8"
9 25.4 3-1/2" 1/2" 7/16"



Angle - Print PDF

angles_small

ASTM 137

20' & 40' Stock Lengths



Structural Angles Estimated Weight    Structural Angles Estimated Weight
A B C LBS/Ft LBS/20' A B C LBS/Ft LBS/20'
3" 2" 3/16" 3.1 62 5" 3-1/2" 3/16" 16.8 336
3" 2" 1/4" 4.1 82 5" 3-1/2" 1/4" 19.8 396
3" 2" 5/16" 5.0 100 5" 5" 5/16" 10.3 210
3" 2" 3/8" 5.9 118 5" 5" 3/8" 12.3 246
3" 2" 7/16" 6.8 136 5" 5" 7/16" 14.3 286
3" 2" 1/2" 7.7 154 5" 5" 1/2" 16.2 324
3" 2-1/2" 3/16" 3.39 67.8 5" 5" 5/8" 20 400
3" 2-1/2" 1/4" 4.5 90 5" 5" 3/4" 23.6 472
3" 2-1/2" 5/16" 5.6 112 5" 5" 7/8" 27.2 544
3" 2-1/2" 3/8" 6.6 132 6" 3-1/2" 1/4" 7.9 158
3" 2-1/2" 7/16" 7.6 152 6" 3-1/2" 5/16" 9.8 196
3" 2-1/2" 1/2" 8.5 170 6" 3-1/2" 3/8" 11.7 234
3" 3" 3/16" 3.71 74.2 6" 3-1/2" 1/2" 15.3 306
3" 3" 1/4" 4.9 98 6" 4" 1/4" 8.3 166
3" 3" 5/16" 6.1 122 6" 4" 5/16" 10.3 206
3" 3" 3/8" 7.2 144 6" 4" 3/8" 12.3 246
3" 3" 1/2" 9.4 188 6" 4" 7/16" 14.3 286
3-1/2" 2-1/2" 1/4" 4.9 98 6" 4" 1/2" 16.2 324
3-1/2" 2-1/2" 5/16" 6.1 122 6" 4" 5/8" 20 400
3-1/2" 2-1/2" 3/8" 7.2 144 6" 4" 3/4" 23.6 472
3-1/2" 2-1/2" 7/16" 8.3 166 6" 4" 7/8" 27.2 544
3-1/2" 2-1/2" 1/2" 9.4 188 6" 6" 5/16" 12.4 248
3-1/2" 3 1/4" 5.4 108 6" 6" 3/8" 14.9 298
3-1/2" 3 5/16" 6.6 132 6" 6" 7/16" 17.2 344
3-1/2" 3 3/8" 7.9 158 6" 6" 1/2" 19.6 392
3-1/2" 3 7/16" 9.1 182 6" 6" 5/8" 24.2 484
3-1/2" 3 1/2" 10.2 204 6" 6" 3/4" 28.7 574
3-1/2" 3-1/2" 1/4" 5.8 116 6" 6" 7/8" 33.1 662
3-1/2" 3-1/2" 5/16" 7.2 144 6" 6" 1 37.4 748
3-1/2" 3-1/2" 3/8" 8.5 170 7" 4" 3/8" 13.6 272
3-1/2" 3-1/2" 7/16" 9.8 196 7" 4" 7/16" 15.8 316
3-1/2" 3-1/2" 1/2" 11.1 222 7" 4" 1/2" 17.9 358
4" 3" 1/4" 5.8 116 7" 4" 9/16" 20 400
4" 3" 5/16" 7.2 144 7" 4" 5/8" 22.1 442
4" 3" 3/8" 8.5 170 7" 4" 3/4" 26.2 524
4" 3" 7/16" 9.8 196 8" 4" 7/16" 17.2 344
4" 3" 1/2" 11.1 222 8" 4" 1/2" 19.6 392
4" 3" 5/8" 13.6 272 8" 4" 9/16" 21.9 438
4" 3-1/2" 1/4" 6.2 124 8" 4" 5/8" 24.2 484
4" 3-1/2" 5/16" 7.7 154 8" 4" 3/4" 28.7 574
4" 3-1/2" 3/8" 9.1 182 8" 4" 7/8" 33.1 662
4" 3-1/2" 7/16" 10.6 212 8" 4" 1 37.4 748
4" 3-1/2" 1/2" 11.9 238 8" 6" 7/16" 20.2 44
4" 3-1/2" 5/8" 14.7 294 8" 6" 1/2" 23 460
4" 4" 1/4" 6.6 132 8" 6" 9/16" 25.7 514
4" 4" 5/16" 8.2 164 8" 6" 5/8" 28.5 570
4" 4" 3/8" 9.8 196 8" 6" 3/4" 33.8 676
4" 4" 7/16" 11.3 226 8" 6" 7/8" 39.1 782
4" 4" 1/2" 12.8 256 8" 6" 1 44.2 884
4" 4" 5/8" 15.7 314 8" 8" 1/2" 26.4 528
4" 4" 3/4" 18.5 370 8" 8" 9/16" 29.6 592
5" 3" 1/4" 6.6 132 8" 8" 5/8" 32.7 654
5" 3" 5/16" 8.2 164 8" 8" 3/4" 38.9 778
5" 3" 3/8" 9.8 196 8" 8" 7/8" 45 900
5" 3" 7/16" 11.3 226 8" 8" 1 51 1020
5" 3" 1/2" 12.8 256 8" 8" 1-1/8" 56.9 1138
5" 3-1/2" 1/4" 7 140 9" 4" 1/2" 21.3 426
5" 3-1/2" 5/16" 8.7 174 9" 4" 9/16" 23.8 476
5" 3-1/2" 3/8" 10.4 208 9" 4" 5/8" 26.3 526
5" 3-1/2" 7/16" 12 240 9" 4" 3/4" 31.3 626
5" 3-1/2" 1/2" 13.6 272 9" 4" 7/8" 36.1 722



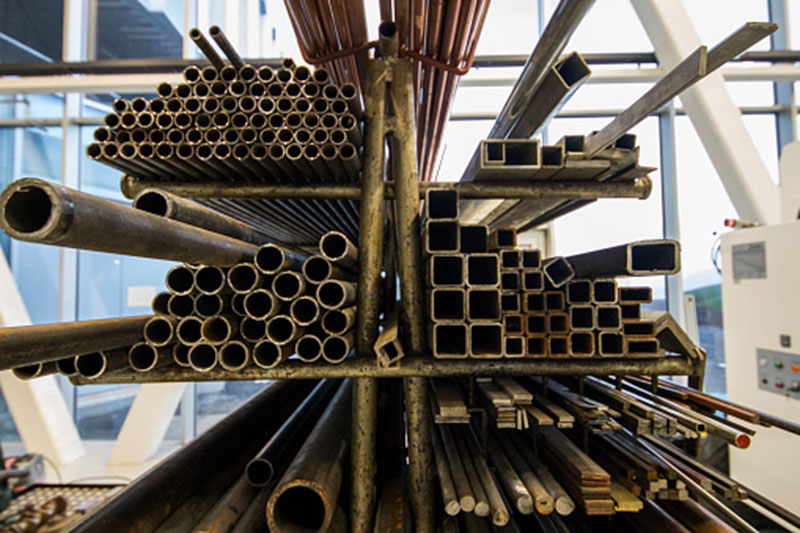

Tube - ASTM A500 - Print PDF

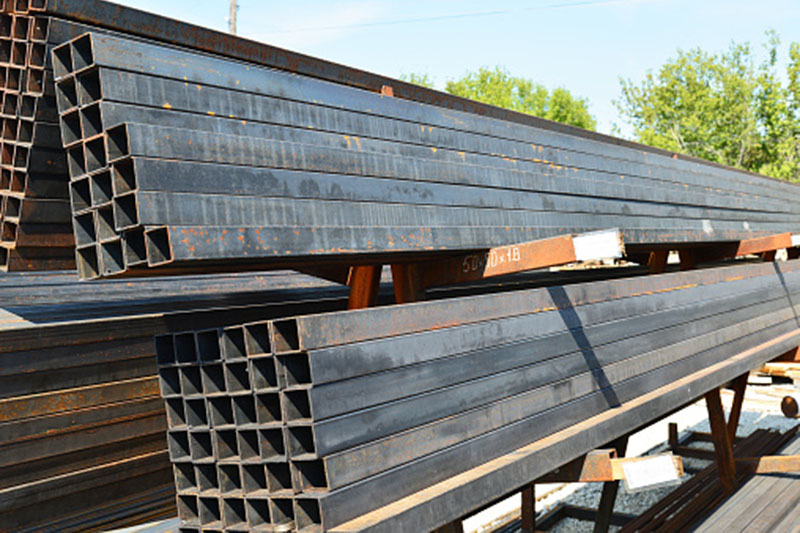

Square and Rectangle Tube
Sqr Dimention in Inches Rec Dimention in Inches .083" .095" .109" .120" Wall Thickness 1/4" 5/16" 3/8" 1/2" 9/16" 5/8"
.134" 3/16"
1-1/2 x 1-1/2   1.57 1.815 1.992 2.252 2.37 3.04 3.7
- 11/2x 2 1.852 2.138 2.363 2.66 2.826 3.68
2 x 2 11/2x 21/2 2.135 2.461 2.733 3.05 3.282 4.32 5.41
- 11/2x 3 2.417 2.784 3.104 3.476 3.737 4.939 6.26
21/2 x 21/2 11/2x 31/2 2.699 3.106 3.474 3.9 4.193 5.59 7.11 8.44
2 x 3
- 11/2x 4 2.981 3.429 3.845 4.292 4.648 6.21
21/2 x 3
3 x 3 2 x 4 3.263 3.753 4.215 4.75 5.104 6.87 8.81 10.58 12.17
- 21/2x 4 3.545 4.078 4.531 5.11 5.474 7.482 9.652
31/2 x 31/2 2 x 5 3.756 4.398 4.902 5.61 5.929 8.15 10.51 12.7 14.72
3 x 4
- 21/2x 5 4.038 4.721 5.272 5.923 6.385 8.753 11.351 13.75 15.98
4 x 4 2 x 6 4.32 5.044 5.643 6.46 6.84 9.42 12.21 14.83 17.27 21.63 23.52 25.26
3 x 5
41/2 x 41/2 2 x 6
3 x 5		 4.32 5.044 5.643 6.46 6.84 9.42 12.21 14.83 17.27 21.63 23.52 25.26
5 x 5 2 x 8 5.55   7.268 7.961 8.864 11.97 15.62 19.08 22.37 28.43 31.22 33.76
3 x 7
4 x 6
51/2 x 51/2 3 x 8       8.695 9.778 13.25 17.32 21.21 24.93 31.84
6 x 6 2 x 10       9.69 10.69 14.53 19.02 23.34 27.48 35.24 38.86 42.26
4 x 8
5 x 7
- 3 x 10
5 x 8		           15.8 20.72 25.47 30.03
7 x 7 2 x 12           17.08 22.42 27.59 32.58 42.05 46.51 50.76
4 x 10
6 x 8
- 3 x 12
5 x 10		           18.35 24.12 29.72 35.14 44.19
8 x 8 4 x 12           19.63 25.82 31.84 37.69 48.85 54.17 59.32
6 x 10
9 x 9 4 x 14
6 x 12
8 x 10		           22.18 29.23 36.1 42.79 55.66 61.83 67.82
10 x 10 4 x 16           24.73 32.63 40.35 47.9 62.46 69.48 76.33
6 x 14
8 x 12
- 4 x 18
6 x 16
8 x 14
10 X 12		             36.03 44.6 53 69.26 79.92 84.79
12 x 12 6 x 18             39.43 48.86 58.1 76.07 90.33 93.25
8 x 16
10 x 14
14 x 14 8 x 20
12 x 16		               57.27 68.31 89.69 102.88 113.69
16 x 16 12 x 20               65.87 78.51 103.29 118.09 130.69



DOM-HFS-ASTM-A519-ASTM-A513-ASTM-A500 - Print PDF

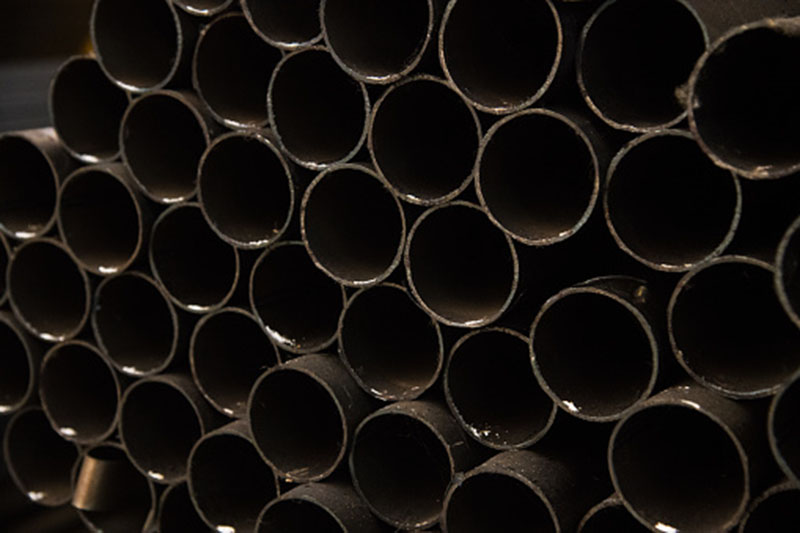

Round Tube
OD Wall  LBS/Ft. OD Wall  LBS/Ft.   OD Wall  LBS/Ft.   OD Wall  LBS/Ft.
.375" .049" 0.171 2" .065" 1.343 4" .065" 2.732 7.75" .250" 20.025
.375" .058" 0.196 2" .083" 1.699 4" .083" 3.472 7.75" .375" 39.537
.375" .065" 0.215 2" .095" 1.933 4" .095" 3.962 7.75" .500" 8.175
.375" .083" 0.259 2" .120" 2.409 4" .109" 4.53 7.75" .750" 56.07
.375" .095" 0.284 2" .125" 2.503 4" .120" 4.973 7.75" 1" 72.09
.375" .120" 0.327 2" .134" 2.67 4" .125" 5.173 7.75" 1.25" 86.775
.500" .035" 0.174 2" .156" 3.072 4" .134" 5.533 7.75" 1.5" 100.125
.500" .049" 0.236 2" .188" 3.63 4" .156" 6.404 7.75" 1.75" 112.14
.500" .058" 0.274 2" .219" 4.166 4" .188" 7.635 8" .250" 20.693
.500" .065" 0.302 2" .250" 4.673 4" .219" 8.843 8" .375" 30.538
.500" .083" 0.37 2" .281" 5.159 4" .250" 10.013 8" .500" 40.05
.500" .095" 0.411 2" .313" 5.632 4" .281" 11.161 8" .625" 49.228
.500" .109" 0.455 2" .375" 6.508 4" .313" 12.307 8" .750" 58.073
.500" .120" 0.487 2" .438" 7.301 4" .375" 14.518 8" 1" 74.76
.500" .125" 0.501 2" .500" 8.01 4" .438" 16.646 8" 1.25" 90.113
.500" .134" 0.524 2.25" .065" 1.517 4" .500" 18.69 8" 1.5" 104.13
.500" .156" 0.573 2.25" .083" 1.921 4" .625" 22.528 8" 1.75" 116.813
.500" .188" 0.626 2.25" .095" 2.186 4" .750" 26.033 8" 2" 128.16
.625" .035" 0.221 2.25" .109" 2.492 4" .875" 29.203 8" 2.25" 138.173
.625" .049" 0.301 2.25" .120" 2.73 4" 1" 32.04 8" 2.5" 146.85
.625" .058" 0.351 2.25" .125" 2.837 4.25" .095" 4.216 8.25" .250" 21.36
.625" .065" 0.389 2.25" .134" 3.028 4.25" .120" 5.293 8.25" .375" 31.359
.625" .083" 0.48 2.25" .156" 3.489 4.25" .125" 5.507 8.25" .500" 41.385
.625" .095" 0.538 2.25" .188" 4.3 4.25" .134" 5.89 8.25" .625" 50.897
.625" .109" 0.601 2.25" .219" 4.75 4.25" .156" 6.821 8.25" .750" 60.075
.625" .120" 0.647 2.25" .250" 5.34 4.25" .188" 8.135 8.25" 1" 77.43
.625" .125" 0.688 2.25" .281" 5.909 4.25" .250" 10.68 8.25" 1.25" 93.45
.625" .134" 0.703 2.25" .313" 6.466 4.25" .313" 13.141 8.25" 1.5" 108.135
.625" .156" 0.781 2.25" .344" 7.022 4.25" .375" 15.519 8.25" 2" 133.5
.625" .188" 0.876 2.25" .375" 7.509 4.25" .500" 20.025 8.5" .250" 22.028
.750" .035" 0.267 2.25" .438" 8.469 4.25" .625" 24.197 8.5" .375" 32.541
.750" .049" 0.367 2.25" .500" 9.345 4.25" .688" 26.173 8.5" .500" 42.72
.750" .058" 0.429 2.5" .065" 1.609 4.25" .750" 28.035 8.5" .625" 52.566
.750" .065" 0.476 2.5" .083" 2.143 4.25" .875" 31.539 8.5" .750" 62.078
.750" .083" 0.591 2.5" .095" 2.44 4.25" 1" 34.71 8.5" 1" 80.1
.750" .095" 0.665 2.5" .109" 2.783 4.25" 1.25" 40.05 8.5" 1.25" 96.788
.750" .109" 0.746 2.5" .120" 3.05 4.5" .095" 4.469 8.5" 1.5" 112.14
.750" .120" 0.807 2.5" .125" 3.171 4.5" .125" 5.841 8.5" 1.75" 126.158
.750" .125" 0.834 2.5" .134" 3.386 4.5" .134" 6.248 8.5" 2" 138.84
.750" .134" 0.882 2.5" .156" 3.905 4.5" .156" 7.237 8.5" 2.25" 150.188
.750" .156" 0.99 2.5" .188" 4.631 4.5" .188" 8.636 8.5" 2.5" 160.2
.750" .188" 1.126 2.5" .219" 5.335 4.5" .219" 10.013 8.75" .375" 33.542
.750" .219" 1.242 2.5" .250" 6.008 4.5" .250" 11.348 8.75" .500" 44.055
.750" .250" 1.335 2.5" .281" 6.659 4.5" .281" 12.662 8.75" .750" 64.08
.875" .049" 0.432 2.5" .313" 7.301 4.5" .313" 13.976 8.75" 1" 82.77
.875" .058" 0.506 2.5" .344" 7.921 4.5" .375" 16.521 8.75" 1.25" 100.125
.875" .065" 0.562 2.5" .375" 8.511 4.5" .438" 18.982 8.75" 2" 144.18
.875" .083" 0.702 2.5" .438" 9.637 4.5" .500" 21.36 9" .375" 34.543
.875" .095" 0.791 2.5" .500" 10.68 4.5" .625" 25.866 9" .500" 45.39
.875" .109" 0.892 2.5" .625" 12.516 4.5" .750" 30.038 9" .750" 68.083
.875" .120" 0.968 2.5" .750" 14.018 4.5" .875" 33.876 9" 1" 85.44
.875" .125" 1.001 2.75" .065" 1.864 4.5" 1" 37.38 9" 1.25" 103.643
.875" .134" 1.06 2.75" .083" 2.364 4.5" 1.25" 43.388 9" 1.5" 120.15
.875" .156" 1.198 2.75" .095" 2.64 4.5" 1.5" 48.06 9" 2" 149.52
.875" .188" 1.377 2.75" .109" 3.074 4.75" .120" 5.934 9" 2.5" 173.55
.875" .219" 1.534 2.75" .120" 3.371 4.75" .125" 6.174 9" 3" 192.24
.875" .250" 1.669 2.75" .125" 3.504 4.75" .188" 9.136 9.25" .250" 24.03
1" .049" 0.498 2.75" .134" 3.744 4.75" .250" 12.015 9.25" .375" 35.544
1" .058" 0.584 2.75" .156" 4.322 4.75" .313" 14.81 9.25" .500" 46.725
1" .065" 0.649 2.75" .188" 5.131 4.75" .375" 17.522 9.25" .750" 68.085
1" .083" 0.813 2.75" .219" 5.92 4.75" .438" 20.15 9.25" 1" 88.11
1" .109" 1.037 2.75" .250" 6.675 4.75" .500" 22.695 9.25" 1.125" 97.622
1" .120" 1.126 2.75" .281" 7.41 4.75" .625" 27.534 9.25" 1.25" 106.8
1" .125" 1.168 2.75" .313" 8.135 4.75" .750" 32.04 9.25" 1.5" 124.155
1" .134" 1.239 2.75" .344" 8.839 4.75" .812" 34.151 9.25" 2" 154.86
1" .156" 1.406 2.75" .375" 9.512 4.75" .875" 36.212 9.25" 2.5" 180.225
1" .180" 1.576 2.75" .438" 10.805 4.75" 1" 40.05 9.5" .250" 24.698
1" .188" 1.627 2.75" .500" 12.015 4.75" 1.25" 46.725 9.5" .375" 36.546
1" .219" 1.827 2.75" .625" 14.184 5.75" .875" 45.557 9.5" .500" 48.06
1" .250" 2.003 2.875" .065" 1.951 5.75" 1" 50.73 9.5" .625" 59.241
1" .281" 2.158 2.875" .083" 2.475 5.75" 1.125" 55.569 9.5" .750" 70.088
1" .313" 2.295 2.875" .095" 2.821 5.75" 1.25" 60.075 9.5" .875" 80.601
1.125" .049" 0.563 2.875" .120" 3.531 5.75" 1.5" 68.085 9.5" 1" 90.78
1.125" .058" 0.661 2.875" .125" 3.671 6" .083" 5.245 9.5" 1.25" 110.138
1.125" .065" 0.736 2.875" .134" 3.923 6" .120" 7.536 9.5" 1.5" 128.16
1.125" .083" 0.924 2.875" .156" 4.53 6" .125" 7.843 9.5" 1.75" 144.848
1.125" .109" 1.183 2.875" .188" 5.382 6" .188" 11.64 9.5" 2" 160.2
1.125" .120" 1.288 2.875" .219" 6.212 6" .250" 15.353 9.5" 2.5" 174.218
1.125" .134" 1.418 2.875" .250" 7.009 6" .313" 18.982 9.75" .250" 25.365
1.125" .156" 1.614 2.875" .281" 7.785 6" .375" 22.528 9.75" .500" 49.395
1.125" .188" 1.877 2.875" .313" 8.552 6" .500" 29.37 9.75" .750" 72.09
1.125" .219" 2.119 2.875" .375" 10.013 6" .625" 35878 9.75" 1" 93.45
1.125" .250" 2.336 2.875" .438" 11.389 6" .750" 42.053 9.75" 1.13" 104.303
1.125" .281" 2.533 2.875" .500" 12.683 6" .875" 47.893 9.75" 1.25" 113.475
1.250" .065" 0.823 3" .065" 2.037 6" 1" 53.4 9.75" 1.5" 132.165
1.250" .083" 1.034 3" .083" 2.586 6" 1.25" 63.413 10" .250" 26.03
1.250" .109" 1.172 3" .095" 2.947 6" 1.5" 72.09 10" .375" 38.548
1.250" .120" 1.438 3" .120" 3.91 6" 1.75" 79.43 10" .500" 50.73
1.250" .125" 1.502 3" .125" 3.838 6" 2" 85.44 10" .750" 74.093
1.250" .134" 1.597 3" .134" 4.102 6.25" .120" 7.856 10" 1" 96.12
1.250" .156" 1.823 3" .156" 4.738 6.25" .125" 8.177 10" 1.125" 106.633
1.250" .188" 2.128 3" .188" 5.632 6.25" .188" 12.14 10" 1.250" 116.813
1.250" .219" 2.411 3" .219" 6.505 6.25" .250" 16.02 10" 1.5" 136.17
1.250" .250" 2.67 3" .250" 7.343 6.25" .375" 23.529 10.25" .250" 26.7
1.250" .281" 2.908 3" .281" 8.16 6.25" .500" 30.705 10.25" .375" 39.549
1.250" .313" 3.129 3" .313" 8.97 6.25" .625" 37.547 10.25" .500" 52.065
1.250" .375" 3.504 3" .375" 10.513 6.25" .750" 44.055 10.25" .750" 76.095
1.375" .049" 0.694 3" .438" 11.973 6.25" 1" 56.07 10.25" 1" 98.78
1.375" .065" 0.909 3" .500" 13.35 6.25" 1.25" 66.75 10.25" 1.25" 120.15
1.375" .083" 1.145 3" .625" 15.853 6.25" 1.5" 76.095 10.25" 1.5" 140.175
1.375" .095" 1.299 3" .688" 16.986 6.5" .250" 16.688 10.25" 2" 176.22
1.375" .120" 1.608 3" .750" 18.023 6.5" .375" 24.531 10.25" 2.25" 192.24
1.375" .125" 1.669 3" .875" 19.858 6.5" .500" 32.04 10.25" 2.5" 206.925
1.375" .134" 1.776 3" 1" 21.36 6.5" .625" 39.216 10.5" .250" 27.368
1.375" .156" 2.031 3.25" .065" 2.211 6.5" .750" 46.058 10.5" .375" 40.551
1.375" .188" 2.378 3.25" .083" 2.807 6.5" 1" 58.74 10.5" .500" 53.4
1.375" .219" 2.704 3.25" .095" 3.201 6.5" 1.25" 70.088 10.5" .750" 78.098
1.375" .250" 3.004 3.25" .120" 4.011 6.5" 1.375" 75.261 10.5" 1" 101.46
1.375" .281" 3.283 3.25" .125" 4.172 6.5" 1.5" 80.1 10.5" 1.25" 123.488
1.375" .313" 3.55 3.25" .134" 4.459 6.5" 1.75" 88.778 10.5" 1.5" 144.18
1.500" .065" 0.996 3.25" .156" 5.155 6.5" 1.875" 92.616 10.5" 2" 181.56
1.500" .083" 1.256 3.25" .188" 6.133 6.5" 2" 96.12 10.5" 2.25" 198.248
1.500" .095" 1.426 3.25" .219" 7.089 6.75" .250" 17.355 10.5" 2.5" 213.6
1.500" .120" 1.769 3.25" .250" 8.01 6.75" .375" 25.532 10.5" 3" 240.3
1.500" .125" 1.836 3.25" .281" 8.91 6.75" .500" 33.375 10.75" .250" 28.035
1.500" .134" 1.955 3.25" .313" 9.804 6.75" .625" 40.884 10.75" .375" 41.552
1.500" .156" 2.239 3.25" .344" 10.676 6.75" .750" 48.06 10.75" .500" 54.735
1.500" .188" 2.628 3.25" .375" 11.514 6.75" .875" 54.902 10.75" .750" 80.1
1.500" .219" 2.996 3.25" .438" 13.141 6.75" 1" 61.41 10.75" 1" 104.13
1.500" .250" 3.338 3.25" .500" 14.685 6.75" 1.25" 73.425 10.75" 1.25" 126.825
1.500" .281" 3.658 3.25" .625" 17.522 6.75" 1.5" 84.105 10.75" 1.5" 148.185
1.500" .313" 3.963 3.25" .750" 20.025 6.75" 1.625" 88.94 10.75" 2" 186.9
1.500" .344" 4.247 3.25" .875" 22.194 7" .188" 13.642 10.75" 2.5" 220.275
1.75" .065" 1.17 3.25" 1" 24.03 7" .250" 18.023 11" .250" 28.703
1.75" .083" 1.478 3.5" .065" 2.385 7" .375" 26.533 11" .375" 42.553
1.75" .095" 1.679 3.5" .083" 3.029 7" .500" 34.71 11" .500" 56.07
1.75" .120" 2.089 3.5" .095" 3.455 7" .625" 42.553 11" .750" 82.103
1.75" .125" 2.169 3.5" .109" 3.948 7" .750" 50.063 11" 1" 106.8
1.75" .134" 2.313 3.5" .120" 4.332 7" 1" 64.08 11" 1.25" 130.163
1.75" .156" 2.656 3.5" .125" 4.506 7" 1.25" 76.763 11" 1.5" 152.19
1.75" .188" 3.129 3.5" .134" 4.817 7" 1.5" 88.11 11" 2" 192.24
1.75" .219" 3.581 3.5" .156" 5.571 7" 1.75" 98.123 11" 2.25" 210.263
1.75" .250" 4.005 3.5" .188" 6.633 7" 2" 106.8 11" 2.5" 226.95
1.75" .281" 4.409 3.5" .219" 7.674 7.25" .250" 18.69 11" 3" 256.32
1.75" .313" 4.798 3.5" .250" 8.678 7.25" .375" 27.534 11.5" .375" 44.556
1.75" .375" 5.507 3.5" .281" 9.66 7.25" .500" 36.045 11.5" .500" 58.74
1.75" .420" 5.966 3.5" .313" 10.638 7.25" .625" 44.22 11.5" .750" 86.108
1.75" .438' 6.133 3.5" .375" 12.516 7.25" .750" 52.065 11.5" 1" 112.14
1.75" .500" 6.675 3.5" .438" 14.31 7.25" 1" 66.75 11.5" 1.25" 136.838
1.875" .065" 1.257 3.5" .500" 16.02 7.25" 1.25" 80.1 11.5" 1.5" 160.2
1.875" .083" 1.589 3.5" .625" 19.191 7.25" 1.5" 92.115 11.5" 2" 202.92
1.875" .095" 1.806 3.5" .750" 22.028 7.5" .250" 19.358 11.5" 2.25" 222.278
1.875" .120" 2.249 3.5" .875" 24.531 7.5" .375" 28.536 11.5" 2.5" 240.3
1.875" .125" 2.336 3.5" 1" 26.7 7.5" .500" 37.38 12" .250" 31.373
1.875" .134" 2.92 3.75" .095" 3.708 7.5" .625" 45.891 12" .375" 46.558
1.875" .156" 2.864 3.75" .125" 4.839 7.5" .750" 54.068 12" .500" 61.41
1.875" .188" 3.379 3.75" .188" 7.134 7.5" 1" 69.42 12" .750" 90.113
1.875" .219" 3.873 3.75" .219" 8.259 7.5" 1.125" 76.596 12" 1" 117.48
1.875" .250" 4.339 3.75" .250" 9.345 7.5" 1.25" 83.438 12" 1.25" 143.513
1.875" .281" 4.784 3.75" .313" 11.473 7.5" 1.5" 96.12 12" 1.5" 168.21
1.875" .313" 5.215 3.75" .375" 13.517 7.5" 2" 117.48 12" 1.75" 191.573
1.875" .375" 6.008 3.75" .438" 15.478       12" 2" 213.6
      3.75" .500" 17.355       12" 2.5" 253.65
      3.75" .625" 20.859       12" 3" 288.36
      3.75" .750" 24.03
      3.75" 1" 29.37






Hot Rolled Bar - Print PDF


Hot Rolled Rounds
C1117    C1018   C1040    C1041    C1045
Size LBS/Ft 20 ft Bar LBS/Foot LBS/20' LBS/20' LBS/Foot LBS/20' LBS/20'
3/8" 0.376 7.52 2-3/8" 15.06 301.2 5" 66.76 1335
1/2" 0.668 13.36 2-1/2" 16.69 333.8 5-1/4" 73.6 1472
5/8" 1.04 20.8 2-5/8" 18.4 368 5-1/2" 80.78 1616
11/16" 1.26 25.2 2-3/4" 20.19 403.8 5-3/4" 88.29 1766
3/4" 1.5 30 2-7/8" 22.07 441.4 6" 96.13 1923
13/16" 1.76 35.2 3" 24.03 480.6 6-1/4" 104.3 2086
7/8" 2.04 40.8 3-1/8" 26.08 521.6 6-1/2" 112.8 2256
1" 2.67 53.4 3-1/4" 28.21 564.2 6-3/4" 121.7 2434
1-1/8" 3.38 67.6 3-3/8" 30.42 608.4 7" 130.9 2618
1-3/16" 3.77 75.4 3-1/2" 32.71 654.2 7-1/4" 140.4 2808
1-1/4" 4.17 83.4 3-5/8" 35.09 701.8 7-1/2" 150.2 3004
1-5/16" 4.6 92 3-3/4" 37.55 751 7-3/4" 160.4 3208
1-3/8" 5.05 101 3-7/8" 40.1 802 8" 170.9 3418
1-1/2" 6.01 120.2 4" 42.73 854.6 8-1/4" 181.8 3636
1-5/8" 7.05 141 4-1/8" 45.44 908.8 8-1/2" 192.9 3858
1-3/4" 8.18 163.6 4-1/4" 48.23 964.6 8-3/4" 204.5 4090
1-7/8" 9.39 187.8 4-3/8" 51.11 1022 9" 216.3 4326
2 10.68 213.6 4-1/2" 54.08 1082 9-1/4" 228.5 4570
2-1/8" 12.06 241.2 4-5/8" 57.12 1142 9-1/2" 241 4820
2-3/16" 12.78 255.6 4-3/4" 60.25 1205 10" 267 5340
2-1/4" 13.52 270.4       10-1/2" 294.4 5888

Print PDF


Hot Rolled Squares
ASTM A36 Merchant Quality                                     C 1018 C1045 Special Quality
Size LBS/Ft 20' Bar Size LBS/Ft 20' Bar
1/4" 0.213 4.26 1-1/2" 7.650 153
5/16" 0.332 6.64 1-5/8" 8.980 179.6
3/8" 0.478 9.56 1-3/4" 10.410 208.2
7/16" 0.651 13.02 1-7/8" 11.950 239
1/2" 0.850 17 2-1/4" 17.21 344.2
9/16" 1.080 21.6 2-1/2" 21.25 425
5/8" 1.330 26.6 2-5/8" 23.43 486.6
11/16" 1.610 32.2 2-3/4" 25.71 514.2
3/4" 1.910 38.2 3" 30.6 612
13/16" 2.240 44.8 3-1/4" 35.91 718.2
7/8" 2.600 52 3-1/2" 41.65 833
15/16" 2.990 59.8 3-3/4" 47.81 956.2
1" 3.400 68 4" 54.4 1088
1-1/8" 4.300 86 4-1/2" 68.85 1377
1-1/4" 5.310 106.2 5" 85 1700
1-5/16" 5.860 117.2 6" 122.4 2448
1-3/8" 6.430 128.6

Print PDF

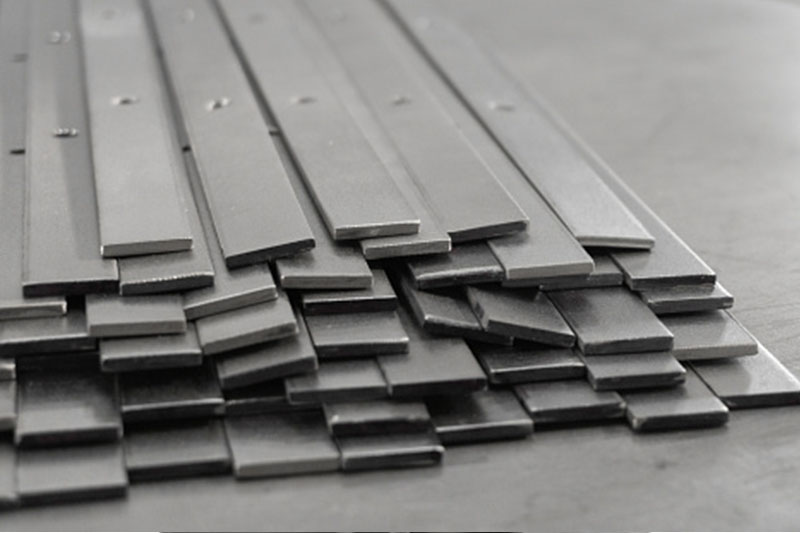

Hot Rolled Strip
Size Width LBS/Ft 20' Bar Thickness Width LBS/Ft 20' Bar Thickness Width LBS/Ft 20' Bar
.065" (16 Ga.) 1/2" 0.110 2.2 1/8" 1/2" 0.213 4.26 3/16" 3/8" 0.239 4.78
.065" (16 Ga.) 5/8" 0.138 2.76 1/8" 5/8" 0.266 5.32 3/16" 1/2" 0.319 6.38
.065" (16 Ga.) 3/4" 0.166 3.32 1/8" 3/4" 0.319 6.38 3/16" 5/8" 0.398 7.96
.065" (16 Ga.) 7/8" 0.193 3.86 1/8" 7/8" 0.372 7.44 3/16" 3/4" 0.478 9.56
.065" (16 Ga.) 1" 0.221 4.42 1/8" 1" 0.425 8.5 3/16" 7/8" 0.558 11.16
.065" (16 Ga.) 1-1/4" 0.276 5.52 1/8" 1-1/8" 0.478 9.56 3/16" 1" 0.638 12.76
.065" (16 Ga.) 1-1/2" 0.331 6.62 1/8" 1-1/4" 0.531 10.62 3/16" 1-1/8" 0.717 14.34
.065" (16 Ga.) 1-3/4" 0.386 7.72 1/8" 1-3/8" 0.584 11.68 3/16" 1-1/4" 0.797 15.94
.065" (16 Ga.) 2" 0.442 8.84 1/8" 1-1/2" 0.638 12.76 3/16" 1-3/8" 0.877 17.54
.065" (16 Ga.) 2-1/4" 0.497 9.94 1/8" 1-3/4" 0.744 14.88 3/16" 1-1/2" 0.956 19.12
.065" (16 Ga.) 2-1/2" 0.552 11.04 1/8" 2" 0.85 17 3/16" 1-3/4" 1.12 22.4
.065" (16 Ga.) 3" 0.662 13.24 1/8" 2-1/4" 0.956 19.12 3/16" 2" 1.28 25.6
.083" (14 Ga.) 1/2" 0.142 2.84 1/8" 2-1/2" 1.06 21.2 3/16" 2-1/4" 1.43 28.6
.083" (14 Ga.) 5/8" 0.179 3.58 1/8" 2-3/4" 1.17 23.4 3/16" 2-1/2" 1.59 31.8
.083" (14 Ga.) 3/4" 0.211 4.22 1/8" 3" 1.28 25.6 3/16" 2-3/4" 1.75 35
.083" (14 Ga.) 7/8" 0.247 4.94 1/8" 3-1/4" 1.38 27.6 3/16" 3" 1.91 38.2
.083" (14 Ga.) 1" 0.282 5.64 1/8" 3-1/2" 1.49 29.8 3/16" 3-1/4" 2.07 41.4
.083" (14 Ga.) 1-1/4" 0.353 7.06 1/8" 4" 1.7 34 3/16" 3-1/2" 2.23 44.6
.083" (14 Ga.) 1-1/2" 0.424 8.48 1/8" 4-1/2" 1.91 38.2 3/16" 4" 2.55 51
.083" (14 Ga.) 1-3/4" 0.493 9.86 1/8" 5" 2.13 42.6 3/16" 4-1/2" 2.87 57.4
.083" (14 Ga.) 2" 0.564 11.28 1/8" 5-1/2" 2.34 46.8 3/16" 5" 3.19 63.8
.083" (14 Ga.) 2-1/2" 0.706 14.12 1/8" 6" 2.55 51 3/16" 5-1/2" 3.51 70.2
.083" (14 Ga.) 3" 0.846 16.92 1/8" 7" 2.98 59.6 3/16" 6" 3.83 76.6
.083" (14 Ga.) 3-1/2" 0.988 19.76 1/8" 8" 3.4 68 3/16" 7" 4.46 89.2
.083" (14 Ga.) 4" 1.130 22.6 1/8" 9" 3.83 76.6 3/16" 8" 5.1 102
.109" (12 Ga.) 1/2" 0.185 3.7 1/8" 10" 4.25 85 3/16" 9" 5.74 114.8
.109" (12 Ga.) 5/8" 0.232 4.64 1/8" 12" 5.1 102 3/16" 10" 6.38 127.6
.109" (12 Ga.) 3/4" 0.278 5.56 1/8" 3/4" 0.342 6.84 3/16" 12" 7.65 153
.109" (12 Ga.) 7/8" 0.324 6.48 .134" (10 Ga.) 1" 0.456 9.12
.109" (12 Ga.) 1" 0.371 7.42 .134" (10 Ga.) 1-1/2" 0.683 13.66
.109" (12 Ga.) 1-1/8" 0.416 8.32 .134" (10 Ga.) 2" 0.911 18.22
.109" (12 Ga.) 1-1/4" 0.463 9.26 .134" (10 Ga.) 2-1/2" 1.14 22.8
.109" (12 Ga.) 1-1/2" 0.556 11.12
.109" (12 Ga.) 1-3/4" 0.648 12.96
.109" (12 Ga.) 2" 0.742 14.84
.109" (12 Ga.) 2-1/4" 0.834 16.68
.109" (12 Ga.) 2-1/2" 0.926 18.52
.109" (12 Ga.) 3" 1.110 22.2
.109" (12 Ga.) 3-1/2" 1.300 26
.109" (12 Ga.) 4" 1.480 29.6

Print PDF


Hot Rolled Flats
Size Width LBS/Ft 20' Bar Thickness Width LBS/Ft 20' Bar Thickness Width LBS/Ft 20' Bar
1/4" 3/8" 0.319 6.38 7/16" 3/4" 1.116 22.32 7/8" 1" 2.975 59.5
1/4" 1/2" 0.425 8.5 7/16" 7/8" 1.302 26.04 7/8" 1-1/4" 3.719 74.38
1/4" 5/8" 0.531 10.62 7/16" 1" 1.488 29.76 7/8" 1-3/8" 4.019 81.82
1/4" 3/4" 0.638 12.76 7/16" 1-1/4" 1.859 37.18 7/8" 1-1/2" 4.463 89.26
1/4" 7/8" 0.744 14.88 7/16" 1-1/2" 2.231 44.62 7/8" 1-3/4" 5.206 104.1
1/4" 1" 0.850 17 7/16" 1-3/4" 2.603 52.06 7/8" 2" 5.95 119
1/4" 1-1/8" 0.956 19.12 7/16" 2" 2.975 59.5 7/8" 2-1/4" 6.694 133.9
1/4" 1-1/4" 1.063 21.26 7/16" 2-1/4" 3.347 66.94 7/8" 2-1/2" 7.438 148.8
1/4" 1-3/8" 1.169 23.38 7/16" 2-1/2" 3.719 74.38 7/8" 2-3/4" 8.181 163.6
1/4" 1-1/2" 1.275 25.5 7/16" 3" 4.463 89.26 7/8" 3" 8.925 178.5
1/4" 1-5/8" 1.381 27.62 7/16" 3-1/2" 5.206 104.1 7/8" 3-1/2" 10.41 208.2
1/4" 1-3/4" 1.488 29.76 7/16" 4" 5.95 119 7/8" 4" 11.9 238
1/4" 2" 1.700 34 7/16" 4-1/2" 6.694 133.9 7/8" 4-1/2" 13.39 267.8
1/4" 2-1/4" 1.913 38.26 7/16" 5" 7.438 148.8 7/8" 5" 14.87 297.4
1/4" 2-1/2" 2.125 42.5 7/16" 6" 8.925 178.5 7/8" 5-1/2" 16.36 327.2
1/4" 2-3/4" 2.338 46.76 1/2" 5/8" 1.063 21.26 7/8" 6" 17.85 357
1/4" 3" 2.550 51 1/2" 3/4" 1.275 25.5 7/8" 7" 20.83 416.6
1/4" 3-1/4" 2.763 55.26 1/2" 7/8" 1.488 29.76 7/8" 8" 23.8 476
1/4" 3-1/2" 2.975 59.5 1/2" 1" 1.7 34 1" 1-1/4" 4.25 85
1/4" 3-3/4" 3.188 63.76 1/2" 1-1/8" 1.913 38.26 1" 1-1/2" 5.1 102
1/4" 4" 3.400 68 1/2" 1-1/4" 2.125 42.5 1" 1-3/4" 5.95 119
1/4" 4-1/4" 3.613 72.26 1/2" 1-3/8" 2.338 46.76 1" 2" 6.8 136
1/4" 4-1/2" 3.825 76.5 1/2" 1-1/2" 2.55 51 1" 2-1/4" 7.65 153
1/4" 5" 4.250 85 1/2" 1-5/8" 2.763 55.26 1" 2-1/2" 8.5 170
1/4" 5-1/2" 4.675 93.5 1/2" 1-3/4" 2.975 59.5 1" 2-3/4" 9.35 187
1/4" 6" 5.100 102 1/2" 2" 3.4 68 1" 3" 10.2 24
1/4" 6-1/2" 5.530 110.6 1/2" 2-1/2" 4.25 85 1" 3-1/4" 11.05 221
1/4" 7" 5.950 119 1/2" 2-3/4" 4.675 93.5 1" 3-1/2" 11.9 238
1/4" 4-1/2" 6.380 127.6 1/2" 3" 5.1 102 1" 4" 13.6 272
1/4" 8" 6.800 136 1/2" 3-1/4" 5.525 110.5 1" 4-1/2" 15.3 306
5/16" 1/2" 0.531 10.62 1/2" 3-1/2" 5.95 119 1" 5" 17 340
5/16" 5/8" 0.664 13.28 1/2" 4" 6.8 136 1" 5-1/2" 18.7 374
5/16" 3/4" 0.797 15.94 1/2" 4-1/2" 7.65 153 1" 6" 20.4 408
5/16" 7/8" 0.930 18.6 1/2" 5" 8.5 170 1" 7" 23.8 476
5/16" 1" 1.063 21.26 1/2" 5-1/2" 9.35 187 1" 8" 27.2 544
5/16" 1-1/8" 1.195 23.9 1/2" 6" 10.2 204 1-1/8" 2" 7.65 153
5/16" 1-1/4" 1.328 26.56 1/2" 7" 11.9 238 1-1/8" 3" 11.48 229.6
5/16" 1-3/8" 1.461 29.22 1/2" 8" 13.6 272 1-1/8" 4" 15.3 306
5/16" 1-1/2" 1.594 31.88 5/8" 3/4" 1.594 31.88 1-1/8" 5" 19.13 382.6
5/16" 1-3/4" 1.859 37.18 5/8" 7/8" 1.859 37.18 1-1/8" 6" 22.95 459
5/16" 2" 2.125 42.5 5/8" 1" 2.125 42.5 1-1/4" 1-1/2" 6.375 127.5
5/16" 2-1/4" 2.391 47.82 5/8" 1-1/8" 2.391 47.82 1-1/4" 1-3/4" 7.438 148.8
5/16" 2-1/2" 2.656 53.12 5/8" 1-1/4" 2.656 53.12 1-1/4" 2" 8.5 170
5/16" 2-3/4" 2.922 58.44 5/8" 1-3/8" 2.922 58.44 1-1/4" 2-1/4" 9.563 191.3
5/16" 3" 3.188 63.76 5/8" 1-1/2" 3.188 63.76 1-1/4" 2-1/2" 10.63 212.4
5/16" 3-1/4" 3.453 69.06 5/8" 1-5/8" 3.453 69.06 1-1/4" 2-3/4" 11.69 233.8
5/16" 3-1/2" 3.719 74.38 5/8" 1-3/4" 3.719 74.38 1-1/4" 3" 12.75 255
5/16" 4" 4.250 85 5/8" 2" 4.25 85 1-1/4" 3-1/4" 13.81 276.2
5/16" 4-1/2" 4.781 95.62 5/8" 2-1/4" 4.781 95.62 1-1/4" 3-1/2" 14.87 297.4
5/16" 5" 5.313 106.3 5/8" 2-1/2" 5.313 106.3 1-1/4" 4" 17 340
5/16" 5-1/2" 5.840 116.8 5/8" 2-3/4" 5.844 116.9 1-1/4" 4-1/2" 19.12 382.4
5/16" 6" 6.375 127.5 5/8" 3" 6.375 127.5 1-1/4" 5" 21.25 425
5/16" 7" 7.440 148.7 5/8" 3-1/4" 6.906 138.1 1-1/4" 5-1/2" 23.37 467
5/16" 7-1/2" 4.970 159.4 5/8" 3-1/2" 7.438 148.8 1-1/4" 6" 25.5 510
5/16" 8" 8.500 170 5/8" 4" 8.5 170 1-1/4" 7" 29.75 595
3/8" 1/2" 0.638 12.76 5/8" 4-1/2" 9.563 191.3 1-1/4" 8" 34 680
3/8" 5/8" 0.797 15.94 5/8" 5" 10.63 212.4 1-1/2" 2" 10.2 204
3/8" 3/4" 0.956 19.12 5/8" 5-1/2" 11.69 233.8 1-1/2" 2-1/4" 11.48 229.6
3/8" 7/8" 1.116 22.32 5/8" 6" 12.75 255 1-1/2" 2-1/2" 12.75 255
3/8" 1" 1.275 25.5 5/8" 7" 14.87 297.4 1-1/2" 2-3/4" 14.03 280.6
3/8" 1-1/8" 1.434 28.68 5/8" 8" 17 340 1-1/2" 3" 15.3 306
3/8" 1-1/4" 1.594 31.88 3/4" 7/8" 2.231 44.62 1-1/2" 3-1/2" 17.85 357
3/8" 1-3/8" 1.753 35.06 3/4" 1" 2.55 51 1-1/2" 4" 20.4 408
3/8" 1-1/2" 1.913 38.26 3/4" 1-1/8" 2.869 57.38 1-1/2" 4-1/2" 22.95 459
3/8" 1-5/8" 2.072 41.44 3/4" 1-1/4" 3.188 63.76 1-1/2" 5" 25.5 510
3/8" 1-3/4" 2.231 44.62 3/4" 1-1/2" 3.825 76.5 1-1/2" 5-1/2" 28.05 561
3/8" 2" 2.550 51 3/4" 1-5/8" 4.144 82.88 1-1/2" 6" 30.6 612
3/8" 2-1/4" 2.869 57.38 3/4" 1-3/4" 4.463 89.26 1-1/2" 7" 35.7 714
3/8" 2-1/2" 3.188 63.76 3/4" 2" 5.1 102 1-3/4" 2" 11.9 238
3/8" 2-3/4" 3.506 70.12 3/4" 2-1/4" 5.738 114.8 1-3/4" 2-1/2" 14.88 297
3/8" 3" 3.825 76.5 3/4" 2-1/2" 6.375 127.5 1-3/4" 3" 17.85 357
3/8" 3-1/4" 4.144 82.88 3/4" 2-3/4" 7.013 140.3 1-3/4" 3-1/2" 20.83 416.6
3/8" 3-1/2" 4.463 89.26 3/4" 3" 7.65 153 1-3/4" 4" 23.8 476
3/8" 4" 5.100 102 3/4" 3-1/4" 8.288 165.8 1-3/4" 4-1/2" 26.78 535.6
3/8" 4-1/2" 5.738 114.8 3/4" 3-1/2" 8.925 178.5 1-3/4" 5" 29.75 595
3/8" 5" 6.375 127.5 3/4" 4" 10.2 204 1-3/4" 5-1/2" 32.73 654.6
3/8" 5-1/2" 7.013 140.3 3/4" 4-1/2" 11.47 229.4 1-3/4" 6" 35.7 714
3/8" 6" 7.650 153 3/4" 5" 12.75 255 2" 2-1/2" 17 340
3/8" 7" 8.930 178.5 3/4" 5-1/2" 14.02 280.4 2" 3" 20.4 408
3/8" 8" 10.200 204 3/4" 6" 15.3 306 2" 3-1/2" 23.8 476
        3/4" 7" 17.85 357 2" 4" 27.2 544
        3/4" 8" 20.4 408 2" 4-1/2" 30.6 612
                2" 5" 34 680

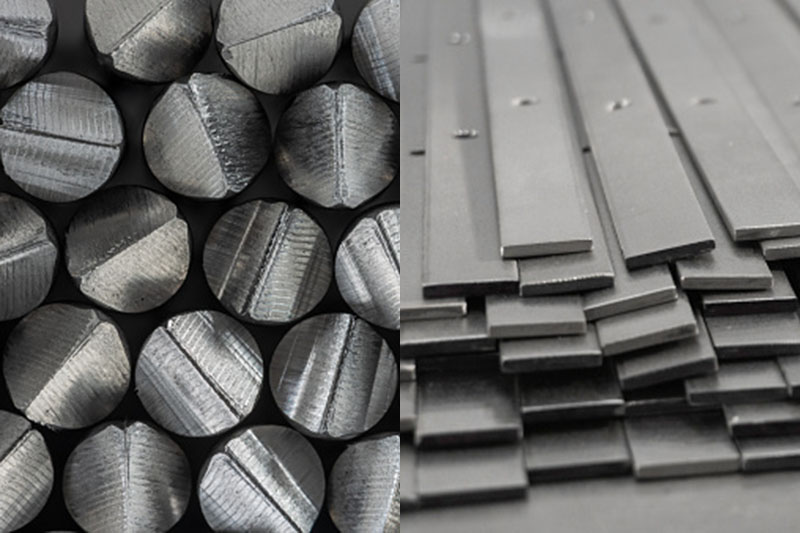

Cold Rolled Bar

Print PDF


Cold Finished Rounds
C1018 C1040 C1045 C1117 C1118 C1137 C1141 C1144 C1213 C1215
Size LBS/Ft 12 ft Bar Size LBS/Ft 12 ft Bar Size LBS/Ft 12 ft Bar
1/8" 0.042 0.504 1-7/16" 5.52 66.24 3-15/16" 41.4 496.8
9/64" 0.053 0.636 1-1/2" 6.01 72.12 4" 42.73 512.8
5/32" 0.065 0.78 1-9/16" 6.52 78.24 4-1/8" 45.44 545.3
3/16" 0.094 1.13 1-5/8" 7.-5 84.6 4-3/16" 46.73 560.8
7/32" 0.128 1.54 1-11/16" 7.6 91.2 4-1/4" 48.23 578.8
1/4" 0.167 2 1-3/4" 8.18 98.16 4-5/16" 49.66 595.9
9/32" 0.211 2.53 1-13/16" 8.77 105.2 4-3/8" 51.11 613.3
5/16" 0.261 3.13 1-7/8" 9.39 112.7 4-7/16" 52.58 631
21/64" 0.288 3.46 1-15/16" 10.02 120.2 4-1/2" 54.08 649
11/32" 0.316 3.79 2" 10.68 128.2 4-9/16" 55.59 667.1
3/8" 0.376 4.51 2-1/16" 11.36 136.3 4-5/8" 57.12 685.4
13/32" 0.441 5.29 2-1/8" 12.06 144.7 4-11/16" 58.68 704.2
7/16" 0.511 6.13 2-3/16" 12.78 153.4 4-3/4" 60.25 723
15/32" 0.587 7.04 2-1/4" 13.52 162.2 4-7/8" 63.52 762.2
1/2" 0.668 8.02 2-5/16" 14.28 171.4 4-15/16" 65.1 781.2
33/64" 0.71 8.52 2-3/8" 15.06 180.7 5" 66.76 801.1
17/32" 0.754 9.05 2-7/16" 15.87 190.4 5-1/16" 68.44 821.3
9/16" 0.845 10.14 2-1/2" 16.69 200.3 5-1/8" 70.14 841.7
19/32" 0.942 11.3 2-9/16" 17.53 210.4 5-3/16" 71.86 862.3
5/8" 1.04 12.48 2-5/8" 18.4 220.8 5-1/4" 73.6 883.2
41/64" 1.1 13.2 2-11/16" 19.29 231.5 5-3/8" 77.15 925.8
21/32" 1.38 13.8 2-3/4" 20.19 242.3 5-7/16" 78.95 947.4
11/16" 1.26 15.12 2-13/16" 21.12 253.4 5-1/2" 80.78 969.4
23/32" 1.38 18 2-7/8" 22.07 264.8 5-3/8" 84.49 1014
3/4" 1.5 18 2-15/16" 23.04 276.5 5-3/4" 88.29 1059
49/64" 1.57 18.84 3" 24.03 288.14 5-7/8" 92.17 1106
25/32" 1.63 19.56 3-1/16" 25.04 300.5 5-15/16" 94.14 1130
13/16" 1.76 21.12 3-1/8" 26.08 313 6" 96.13 1154
27/32" 1.9 22.8 3-3/16" 27.13 325.6 6-1/4" 104.3 1252
7/8" 2.04 24.48 3-1/4" 28.21 338.5 6-1/2" 112.8 1354
57/64" 2.12 25.44 3-5/16" 29.3 351.6 6-3/4' 121.7 1460
29/32" 2.19 26.28 3-3/8" 30.42 365 7" 130.8 1570
15/16" 2.35 28.2 3-7/16" 31.55 378.6 7-1/4" 140.4 1685
1" 2.67 32.04 3-1/2" 32.71 392.5 7-1/2" 150.2 1802
1-1/16" 3.01 36.12 3-9/16" 33.89 406.7 8" 170.9 2051
1-1/8" 3.38 40.56 3-5/8" 35.09 421.1 8-1/2" 192.9 2315
1-3/16" 3.77 45.24 3-11/16" 36.31 435.7 9" 216.3 2596
1-1/4" 4.17 50.04 3-3/4" 37.55 450.6 10" 267 3204
1-5/16" 4.6 55.2 3-13/16" 38.81 465.7 12" 384.5 4614
1-3/8" 5.05 60.6 3-7/8" 40.13 481.6

Print PDF


Cold Finished Flats
Size Width LBS/Ft 12 Ft Bar Size Width LBS/Ft 12 Ft Bar Size Width LBS/Ft 12 Ft Bar
1/8" 3/16" 0.080 0.96 3/8" 7/16" 0.558 6.7 7/8" 1" 2.975 35.7
1/8" 1/4" 0.106 1.27 3/8" 1/2" 0.638 7.66 7/8" 1-1/8" 3.347 40.164
1/8" 5/16" 0.133 1.6 3/8" 9/16" 0.717 8.6 7/8" 1-1/4" 3.719 44.628
1/8" 3/8" 0.159 1.91 3/8" 5/8" 0.797 9.56 7/8" 1-3/8" 4.091 49.092
1/8" 7/16" 0.186 2.23 3/8" 11/16" 0.877 10.52 7/8" 1-1/2" 4.463 53.556
1/8" 1/2" 0.213 2.56 3/8" 3/4" 0.956 11.47 7/8" 1-3/4" 5.206 62.472
1/8" 9/16" 0.239 2.87 3/8" 7/8" 1.116 13.39 7/8" 2" 5.95 71.4
1/8" 5/8" 0.266 3.19 3/8" 1" 1.275 15.3 7/8" 2-1/4" 6.694 80.328
1/8" 11/16" 0.292 3.5 3/8" 1-1/8" 1.434 17.21 7/8" 2-1/2" 7.438 89.256
1/8" 3/4" 0.319 3.83 3/8" 1-1/4" 1.594 19.13 7/8" 2-3/4" 8.181 98.172
1/8" 7/8" 0.372 4.46 3/8" 1-3/8" 1.753 21.04 7/8" 3" 8.925 107.1
1/8" 1" 0.425 5.1 3/8" 1-1/2" 1.913 22.96 7/8" 3-1/4" 9.669 116.028
1/8" 1-1/8" 0.478 5.74 3/8" 1-5/8" 2.072 24.86 7/8" 3-1/2" 10.41 124.92
1/8" 1-1/4" 0.531 6.37 3/8" 1-3/4" 2.231 26.77 7/8" 4" 11.9 142.8
1/8" 1-3/8" 0.584 7.01 3/8" 1-7/8" 2.391 28.69 7/8" 4-1/2" 13.39 160.68
1/8" 1-1/2" 0.638 7.66 3/8" 2" 2.55 30.6 7/8" 5" 14.87 178.44
1/8" 1-3/4" 0.744 8.93 3/8" 2-1/4" 2.869 34.43 7/8" 6" 17.85 214.2
1/8" 1-7/8" 0.797 9.56 3/8" 2-1/2" 3.188 38.26 7/8" 8" 23.8 285.6
1/8" 2" 0.850 10.2 3/8" 2-3/4" 3.506 42.07 7/8" 10" 29.75 357
1/8" 2-1/4" 0.956 11.47 3/8" 3" 3.825 45.9 7/8" 12" 35.7 428.4
1/8" 2-1/2" 1.063 12.76 3/8" 3-1/4" 4.144 49.73 1" 1-1/8" 3.825 45.9
1/8" 2-3/4" 1.169 14.03 3/8" 3-1/2" 4.463 53.56 1" 1-1/4" 4.25 51
1/8" 3" 1.275 15.3 3/8" 3-3/4" 4.781 57.37 1" 1-3/8" 4.675 56.1
1/8" 3-1/4" 1.381 16.57 3/8" 4" 5.1 61.2 1" 1-1/2" 5.1 61.2
1/8" 3-1/2" 1.488 17.86 3/8" 4-1/4" 5.419 65.03 1" 1-5/8" 5.525 66.3
1/8" 3-3/4" 1.594 19.13 3/8" 4-1/2" 5.738 68.86 1" 1-3/4" 5.95 71.4
1/8" 4" 1.700 20.4 3/8" 5" 6.375 76.5 1" 2" 6.8 81.6
1/8" 4-1/2" 1.913 22.96 3/8" 5-1/2" 7.013 84.16 1" 2-1/4" 7.65 91.8
1/8" 5" 2.215 25.5 3/8" 6" 7.65 91.8 1" 2-1/2" 8.5 102
1/8" 5-1/2" 2.338 28.06 3/8" 8" 10.2 122.4 1" 2-3/4" 9.35 112.2
1/8" 6" 2.550 30.3 3/8" 10" 12.75 153 1" 3" 10.2 122.4
3/16" 1/4" 0.160 1.92 3/8" 12" 15.3 183.6 1" 3-1/2" 11.9 142.8
3/16" 5/16" 0.199 2.39 7/16" 1/2" 0.744 8.93 1" 4" 13.6 163.2
3/16" 3/8" 0.239 2.87 7/16" 5/8" 0.93 11.16 1" 4-1/2" 15.3 183.6
3/16" 7/16" 0.279 3.35 7/16" 3/4" 1.116 13.39 1" 5" 17 204
3/16" 1/2" 0.319 3.83 7/16" 7/8" 1.302 15.53 1" 5-1/2" 18.7 224.4
3/16" 9/16" 0.359 4.31 7/16" 1" 1.488 17.86 1" 6" 20.4 244.8
3/16" 5/8" 0.398 4.78 7/16" 1-1/8" 1.673 20.08 1" 8" 27.2 326.4
3/16" 3/4" 0.478 5.74 7/16" 1-1/4" 1.859 22.308 1" 10" 34 408
3/16" 7/8" 0.558 6.7 7/16" 1-1/2" 2.231 26.772 1" 12" 40.8 489.6
3/16" 1" 0.638 7.66 7/16" 1-3/4" 2.9603 35.5236 1-1/8" 1-1/4" 4.781 57.372
3/16" 1-1/8" 0.717 8.6 7/16" 2" 2.975 35.7 1-1/8" 1-3/8" 5.259 63.108
3/16" 1-1/4" 0.797 9.56 7/16" 2-1/4" 3.347 40.164 1-1/8" 1-1/2" 5.738 68.856
3/16" 1-3/8" 0.877 10.52 7/16" 2-1/2" 3.719 44.628 1-1/8" 1-5/8" 6.216 74.592
3/16" 1-1/2" 0.956 11.47 7/16" 2-3/4" 4.091 49.092 1-1/8" 1-3/4" 6.694 80.328
3/16" 1-3/4" 1.116 13.39 7/16" 3" 4.463 53.556 1-1/8" 2" 7.65 91.8
3/16" 1-7/8" 1.195 14.34 7/16" 3-1/2" 5.206 62.472 1-1/8" 2-1/4" 8.606 103.272
3/16" 2" 1.275 15.3 7/16" 4" 5.95 71.4 1-1/8" 2-1/2" 9.563 114.756
3/16" 2-1/4" 1.434 17.21 7/16" 4-1/2" 6.694 80.328 1-1/8" 3" 11.48 137.76
3/16" 2-1/2" 1.594 19.13 7/16" 5" 7.438 89.256 1-1/8" 4" 15.3 183.6
3/16" 2-3/4" 1.753 21.04 7/16" 6" 8.925 107.1 1-1/4" 1-3/8" 5.844 70.128
3/16" 3" 1.913 22.96 1/2" 9/16" 0.956 11.472 1-1/4" 1-1/2" 6.375 76.5
3/16" 3/1/4" 2.072 24.86 1/2" 5/8" 1.063 12.756 1-1/4" 1-5/8" 6.906 82.872
3/16" 3/1/2" 2.231 26.77 1/2" 11/16" 1.169 14.028 1-1/4" 1-3/4" 7.438 89.256
3/16" 3-3/4" 2.391 28.69 1/2" 3/4" 1.275 15.3 1-1/4" 1-7/8" 7.969 95.628
3/16" 4" 2.550 30.6 1/2" 13/16" 1.382 16.584 1-1/4" 2" 8.5 102
3/16" 4-1/2" 2.869 34.43 1/2" 7/8" 1.488 17.856 1-1/4" 2-1/4" 9.563 114.756
3/16" 5" 3.188 38.26 1/2" 1" 1.7 20.4 1-1/4" 2-1/2" 10.62 127.44
3/16" 6" 3.825 45.9 1/2" 1-1/8" 1.913 22.956 1-1/4" 2-3/4" 11.69 140.28
1/4" 5/16" 0.266 3.19 1/2" 1-1/4" 2.125 25.5 1-1/4" 3" 12.75 153
1/4" 3/8" 0.319 3.83 1/2" 1-3/8" 2.388 28.656 1-1/4" 3-1/4" 13.81 165.72
1/4" 7/16" 0.372 4.46 1/2" 1-1/2" 2.55 30.6 1-1/4" 3-1/2" 14.87 178.44
1/4" 1/2" 0.425 5.1 1/2" 1-5/8" 2.763 33.156 1-1/4" 4" 17 204
1/4" 9/16" 0.478 5.74 1/2" 1-3/4" 2.975 35.7 1-1/4" 4-1/2" 19.12 229.44
1/4" 5/8" 0.531 6.37 1/2" 2" 3.4 40.8 1-1/4" 5" 21.25 255
1/4" 11/16" 0.584 7.01 1/2" 2-1/4" 3.825 45.9 1-1/4" 5-1/2" 23.37 280.44
1/4" 3/4" 0.638 7.66 1/2" 2-1/2" 4.25 51 1-1/4" 6" 25.5 306
1/4" 7/8" 0.744 8.93 1/2" 2-3/4" 4.675 56.1 1-1/4" 8" 34 408
1/4" 1" 0.850 10.2 1/2" 3" 4.1 49.2 1-1/4" 10" 42.5 510
1/4" 1-1/8" 0.956 11.47 1/2" 3-1/4" 5.525 66.3 1-1/4" 12" 51 612
1/4" 1-1/4" 1.063 12.76 1/2" 3-1/2" 5.95 71.4 1-3/8" 2" 9.35 112.2
1/4" 1-3/8" 1.169 14.03 1/2" 3-3/4" 6.375 76.5 1-3/8" 3" 14.03 168.36
1/4" 1-1/2" 1.275 15.3 1/2" 4" 6.8 81.6 1-1/2" 1-5/8" 8.29 99.48
1/4" 1-5/8" 1.381 16.57 1/2" 4-1/4" 7.225 86.7 1-1/2" 1-3/4" 8.93 107.16
1/4" 1-3/4" 1.488 17.86 1/2" 4-1/2" 7.65 91.8 1-1/2" 2" 10.2 122.4
1/4" 1-7/8" 1.594 19.13 1/2" 4-3/4" 8.075 96.9 1-1/2" 2-1/4" 11.48 137.76
1/4" 2" 1.700 20.4 1/2" 5" 8.5 102 1-1/2" 2-1/2" 12.75 153
1/4" 2-1/4" 1.913 22.96 1/2" 5-1/2" 9.35 112.2 1-1/2" 2-3/4" 14.03 168.36
1/4" 2-1/2" 2.125 25.5 1/2" 6" 10.2 122.4 1-1/2" 3" 15.3 183.6
1/4" 2-3/4" 2.388 28.06 1/2" 8" 13.6 163.2 1-1/2" 3-1/4" 16.58 198.96
1/4" 3" 2.55 30.6 1/2" 10" 17 204 1-1/2" 3-1/2" 17.85 214.2
1/4" 3-1/4" 2.763 33.16 1/2" 12" 20.4 244.8 1-1/2" 4" 20.4 244.8
1/4" 3-1/2" 2.975 35.7 9/16" 5/8" 1.200 14.4 1-1/2" 4-1/2" 22.95 275.4
1/4" 3-3/4" 3.188 38.26 9/16" 3/4" 1.434 17.208 1-1/2" 5" 25.5 306
1/4" 4" 3.4 40.8 9/16" 7/8" 1.673 20.076 1-1/2" 5-1/2" 28.05 336.6
1/4" 4-1/4" 3.613 43.36 9/16" 1" 1.913 22.956 1-1/2" 6" 30.6 367.2
1/4" 4-1/2" 3.825 45.9 9/16" 1-1/4" 2.391 28.692 1-1/2" 8" 40.8 489.6
1/4" 5" 4.25 51 9/16" 1-1/2" 2.869 34.428 1-1/2" 10" 51 612
1/4" 5-1/2" 4.675 56.1 9/16" 1-3/4" 3.347 40.164 1-1/2" 12" 61.2 734.4
1/4" 6" 5.1 61.2 9/16" 2" 3.825 45.9 1-5/8" 2" 11.05 132.6
1/4" 8" 6.8 81.6 9/16" 2-1/2" 4.781 57.372 1-5/8" 2-1/2" 13.81 165.72
1/4" 10" 8.5 102 9/16" 3" 5.738 68.856 1-5/8" 3" 16.58 198.96
1/4" 12" 10.2 122.4 5/8" 3/4" 1.594 19.128 1-5/8" 4" 22.1 265.2
5/16" 3/8" 0.398 4.78 5/8" 7/8" 1.859 22.308 1-3/4" 2" 11.9 142.8
5/16" 7/16" 0.465 5.58 5/8" 1" 2.125 25.5 1-3/4" 2-1/4" 13.39 160.68
5/16" 1/2" 0.531 6.37 5/8" 1-1/8" 2.391 28.692 1-3/4" 2-1/2" 14.88 178.56
5/16" 9/16" 0.598 7.18 5/8" 1-1/4" 2.656 31.872 1-3/4" 2-3/4" 16.36 196.32
5/16" 5/8" 0.664 7.97 5/8" 1-3/8" 2.922 35.064 1-3/4" 3" 17.85 214.2
5/16" 3/4" 0.797 9.56 5/8" 1-1/2" 3.188 38.256 1-3/4" 3-1/2" 20.83 249.96
5/16" 7/8" 0.9 11.16 5/8" 1-5/8" 3.453 41.436 1-3/4" 4" 23.8 285.6
5/16" 1" 1.063 12.76 5/8" 1-3/4" 3.719 44.628 1-3/4" 4-1/2" 26.78 321.36
5/16" 1-1/8" 1.195 14.34 5/8" 2" 4.25 51 1-3/4" 5" 29.75 357
5/16" 1-1/4" 1.328 15.94 5/8" 2-1/4" 4.781 57.372 1-3/4" 6" 35.7 428.4
5/16" 1-3/8" 1.461 17.53 5/8" 2-1/2" 5.313 63.756 2" 2-1/4" 15.3 183.6
5/16" 1-1/2" 1.594 19.13 5/8" 2-3/4" 5.844 70.128 2" 2-1/2" 17 204
5/16" 1-3/4" 1.859 22.31 5/8" 3" 6.375 76.5 2" 2-3/4" 18.7 224.4
5/16" 2" 2.125 25.5 5/8" 3-1/4" 6.906 82.872 2" 3" 20.4 244.8
5/16" 2-1/8" 2.258 27.1 5/8" 3-1/2" 7.438 89.256 2" 3-1/2" 23.8 285.6
5/16" 2-1/4" 2.391 28.69 5/8" 3-3/4" 7.969 95.628 2" 4" 27.2 326.4
5/16" 2-1/4" 2.656 31.87 5/8" 4" 8.5 102 2" 4-1/2" 30.6 367.2
5/16" 2-3/4" 2.922 35.06 5/8" 4-1/4" 9.031 108.372 2" 5" 34 408
5/16" 3" 3.188 38.26 5/8" 4-1/2" 9.563 114.756 2" 6" 40.8 489.6
5/16" 3-1/4" 3.453 41.44 5/8" 4-3/4" 10.09 121.08 2" 8" 54.4 652.8
5/16" 3-1/2" 3.719 44.63 5/8" 5" 10.62 127.44 2" 10" 68 816
5/16" 4" 4.25 51 5/8" 5-1/2" 11.69 140.28 2" 12" 81.6 979.2
5/16" 4-1/2" 4.781 57.37 5/8" 6" 12.75 153 2-1/4" 2-1/2" 19.13 229.56
5/16" 5" 5.313 63.76 5/8" 7" 14.87 178.44 2-1/4" 3" 22.95 275.4
5/16" 6" 6.375 76.5 5/8" 8" 17 204 2-1/4" 3-1/4" 24.86 298.32
5/16" 8" 8.5 102 5/8" 10" 21.25 255 2-1/4" 3-1/2" 26.78 321.36
5/16" 10" 10.62 127.4 5/8" 12" 25.5 306 2-1/4" 4" 30.6 367.2
5/16" 12" 12.75 153 11/16" 3/4" 1.753 21.036 2-1/4" 4-1/2" 34.43 413.16
        11/16" 7/8" 2.045 24.54 2-1/4" 5" 38.25 459
        11/16" 1" 2.338 28.056 2-1/4" 6" 45.9 550.8
        11/16" 1-1/8" 2.63 31.56 2-1/2" 2-3/4" 23.38 280.56
        3/4" 7/8" 2.231 26.772 2-1/2" 3" 25.5 306
        3/4" 1" 2.55 30.6 2-1/2" 3-1/4" 27.63 331.56
        3/4" 1-1/8" 2.869 34.428 2-1/2" 3-1/2" 39.75 477
        3/4" 1-1-4" 2.188 26.256 2-1/2" 4" 34 408
        3/4" 1-3/8" 3.506 42.072 2-1/2" 4-1/2" 38.25 459
        3/4" 1-1/2" 3.825 45.9 2-1/2" 5" 42.5 510
        3/4" 1-5/8" 4.144 49.728 2-1/2" 6" 51 612
        3/4" 1-3/4" 4.463 53.556 3" 4" 40.8 489.6
        3/4" 2" 5.1 61.2 3" 5" 51 612
        3/4" 2-1/4" 5.738 68.856 3" 6" 61.2 734.4
        3/4" 2-1/2" 6.375 76.5 3" 8" 81.6 979.2
        3/4" 2-3/4" 7.013 84.156 3" 10" 102 1224
        3/4" 3" 7.65 91.8 3" 12" 122.4 1468.8
        3/4" 3-1/4" 8.288 99.456
        3/4" 3-1/2" 8.925 107.1
        3/4" 4" 10.2 122.4
        3/4" 4-1/2" 11.47 137.64
        3/4" 5" 12.75 153
        3/4" 5-1/2" 14.02 168.24
        3/4" 6" 15.3 183.6
        3/4" 8" 20.4 244.8
        3/4" 10" 25.5 306
        3/4" 12" 30.6 367.2



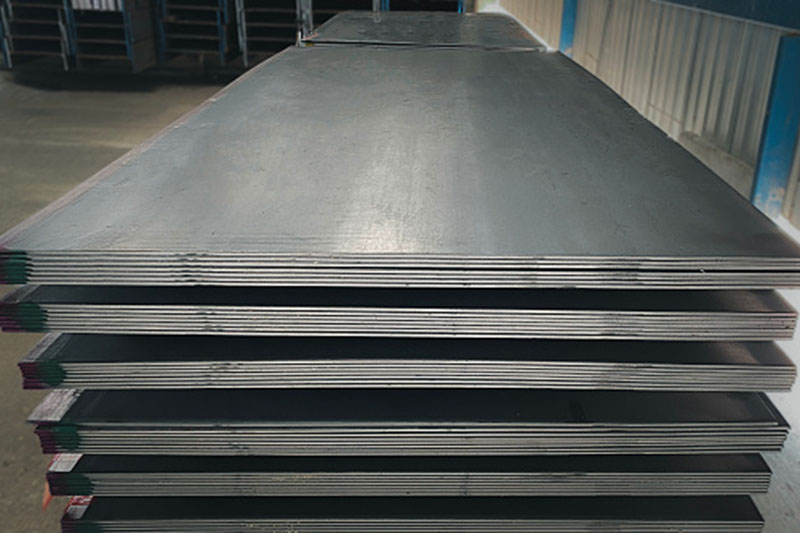

Plate - ASTM A36

Print PDF


Steel Plate
ASTM A36 A286 A441 A514 A515 AISI 1040-1042

Thickness LBS/Sqr Ft LBS/Sqr In Thickness LBS/Sqr Ft LBS/Sqr In
3/16" 7.6579 0.05318 2-3/8" 96.9912 0.6736
1/4" 10.2096 0.0709 2-1/2" 102.096 0.709
5/16" 12.7627 0.08863 2-3/4" 112.3056 0.7799
3/8" 15.3144 0.10635 3" 122.5152 0.8508
7/16" 17.8675 0.12408 3-1/4" 132.7248 0.9217
1/2" 20.4192 0.1418 3-1/2" 142.9344 0.9926
9/16" 22.9723 0.159534 3-3/4" 153.144 1.0635
5/8" 25.524 0.17725 4" 163.3536 1.1344
11/16" 28.0771 0.19498 4-1/2" 183.7728 1.2762
3/4" 30.6288 0.2127 5" 204.192 1.418
13/16" 33.1819 0.23043 5-1/2" 224.6112 1.5598
7/8" 35.7336 0.24815 6" 245.0304 1.7016
15/16" 38.2867 0.26588 6-1/2" 265.4496 1.8434
1" 40.8384 0.2836 7" 285.8688 1.9852
1-1/8" 45.9432 0.31905 7-1/2" 306.288 2.127
1-1/4" 51.048 0.3545 8" 326.7072 2.2688
1-3/8" 56.1528 0.38995 8-1/2" 347.1264 2.4106
1-1/2" 61.2576 0.4254 9" 367.5456 2.552
1-5/8" 66.3624 0.46085 9-1/2" 387.9648 2.6942
1-3/4" 71.4672 0.4963 10" 408.384 2.836
1-7/8" 76.572 0.53175 10-1/2" 428.8032 2.9778
2" 81.6768 0.5672 11" 449.2224 3.1196
2-1/4" 91.8864 0.6381 12" 490.0608 3.4032

Print PDF


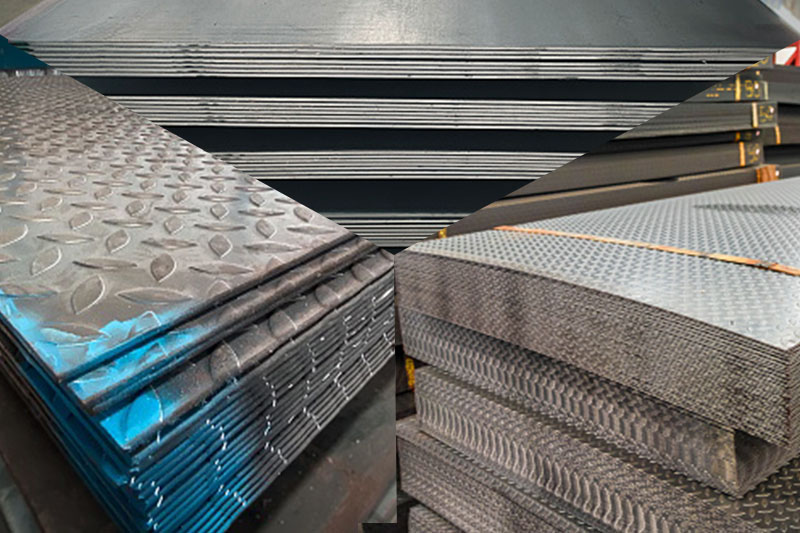

Steel Floor Plate
    Large Pattern      Medium Pattern   Super Diamond   Abrasive Algrip
Thickness LBS/Sqr Ft Thickness LBS/Sqr Ft Thickness LBS/Sqr Ft Thickness LBS/Sqr Ft
.063" 3 5/16" 13.8 1-1/4" 52.05 1/8" 5
.080" 3.75 3/8" 16.35 1-1/2" 62.25 3/16" 7.5
.109" 5.25 1/2" 21.45 1-3/4" 72.45 1/4" 10
1/8" 6.16 5/8" 26.25 2" 82.65 5/16" 12.5
3/16" 8.71 3/4" 31.65 3/8" 15
1/4" 11.26 1" 41.85 7/16" 17.5
1/2" 20



Sheet - Print PDF


Hot/Cold Rolled Steel Sheet
Guage Thickness LBS/Sqr In
28 .0149" 0.625
26 .0179" 0.75
24 .0239" 1
22 .0299" 1.25
20 .0359" 1.5
19 .0418" 1.75
18 .0478" 2
16 .0598" 2.5
14 .0747" 3.125
13 .0897" 3.75
12 .1046" 4.375
11 .1196" 5
10 .1345" 5.625
7 .1793" 7.5



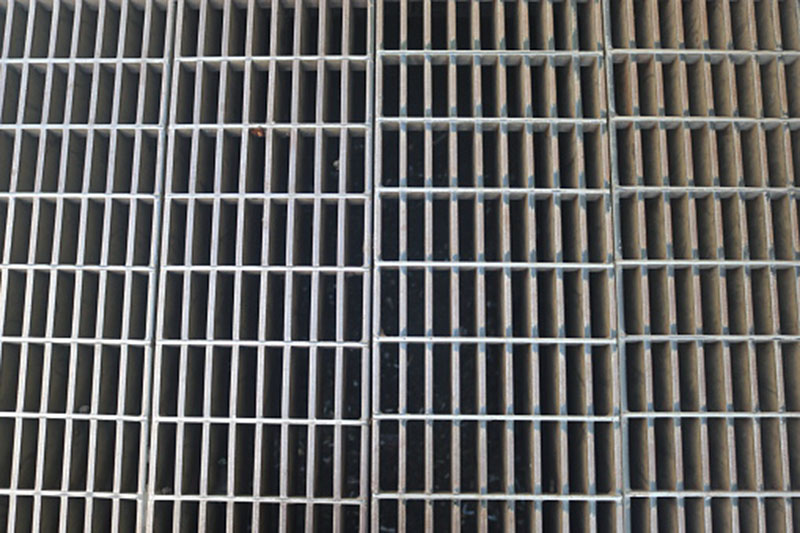

Grating & Mesh - Print PDF

Expanded Metal Size of Opening  Size of Strand  Center to Center of Bridges
Style LBS/Sqr Ft Width Length Thickness Width Width Length
1/4" - 20 0.86 11/64" 23/32" .036" .073" .255" 1.0"
1/4" - 18 1.14 11/64" 23/32" .048" .073" .255" 1.0"
1/2" - 20 0.43 7/16" 15/16" .036" .072" .500" 1.2"
1/2" - 18 0.70 7/16" 15/16" .048" .088" .500" 1.2"
1/2" - 16 0.86 3/8" 15/16" .060" .087" .500" 1.2"
1/2" - 13 1.47 5/16" 15/16" .092" .096" .500" 1.2"
5/8" - 16 0.73 1/2" 1-3/8" .060" .093" 0.631 1.7"
5/8" - 13 1.19 7/16" 1-3/8" .092" .098" 0.631 1.7"
5/8" - 10 1.59 7/16" 1-5/16" .092" .131" 0.631 1.7"
5/8" - 9 2.41 7/16" 1-1/4" .134" .153" 0.706 1.7"
3/4" - 16 Lt. 0.34 13/16" 1-3/4" .060" .064" .923" 2.0"
3/4" - 16 Hy. 0.54 13/16" 1-3/4" .060" .101" .923" 2.0"
3/4" - 13 0.80 3/4" 1-11/16" .092" .096" .923" 2.0"
3/4" - 10 1.20 3/4" 1-5/8" .092" .144" .923" 2.0"
3/4" - 9 1.80 11/16" 1-9/16" .134" .150" 0.923 2.0"
1-1/2" - 18 0.20 1-5/16" 2-5/8" .048" .068" 1.33" 3.0"
1-1/2" - 16 0.40 1-1/4" 2-5/8" .060" .108" 1.33" 3.0"
1-1/2" - 13 0.60 1-3/16" 2-1/2" .092" .105" 1.33" 3.0"
1-1/2" - 10 0.79 1-3/16" 2-1/2" .092" .138" 1.33" 3.0"
1-1/2" - 9 1.20 1-1/8" 2-3/8" .134" .144" 1.33" 3.0"
1-1/2" - 6 2.50 1" 2-5/16" .198" .203" 1.33" 3.0"
2" - 10 0.68 1-5/8" 3-7/16" .092" .164" 1.85" 4.0"
2" - 9 0.90 1-9/16" 3-3/8" .134" .149" 1.85" 4.0"



Expanded Metal Grating Size of Opening  Size of Strand  Center to Center of Bridges
Style LBS/Sqr Ft Width Length Thickness Width Width Length
3 3 .94" 3.56" .183" .264" 1.33" 5.33"
3.14 3.14 1.56" 4.75" .250" .312" 2" 6"
4 4.00 .94" 3.44" .215" .300" 1.33" 5.33"
4.27 4.27 1" 2.88" .250" .300" 1.41" 4"
5 5.00 .81" 3.31" .250" .331" 1.33" 5.33"
6.25 6.25 .81" 3.38" .312" .350" 1.41" 5.33"
7 7.00 .81" 3.31" .312" .391" 1.41" 5.33"



Copyright ©2024 Sligo Steel   |   All Rights Reserved   |   Sligo Steel, 2332 North 40th Street, Decatur, IL 62526   |   217-429-5460

Affiliations: Bi-State Fabricators Association   |   Association of Women in the Metal Industries   |   American Society for Testing and Materials

Home

Products

Services

About Us

Gallery

Contact



Website Design by Timmermann Group
